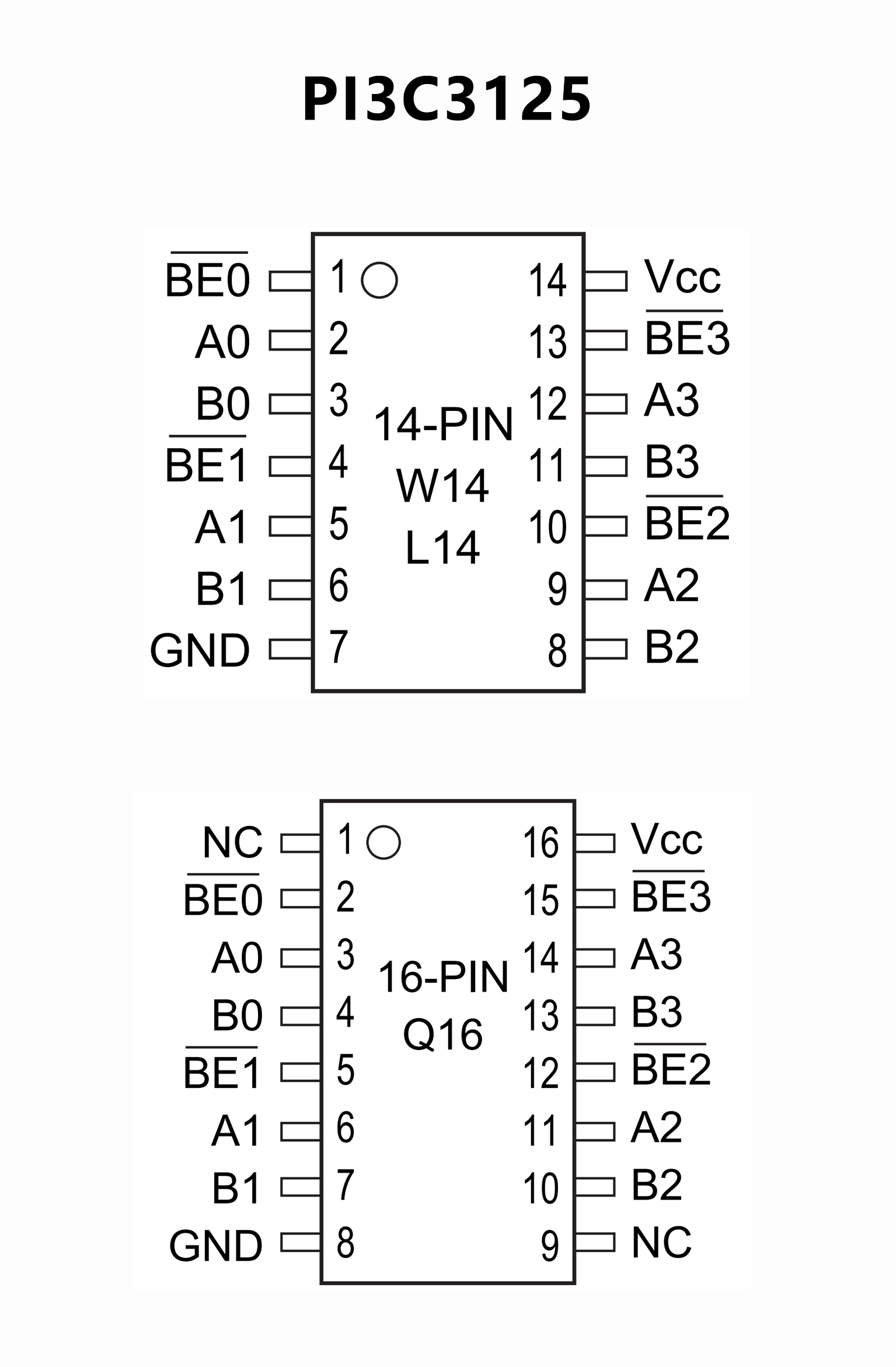

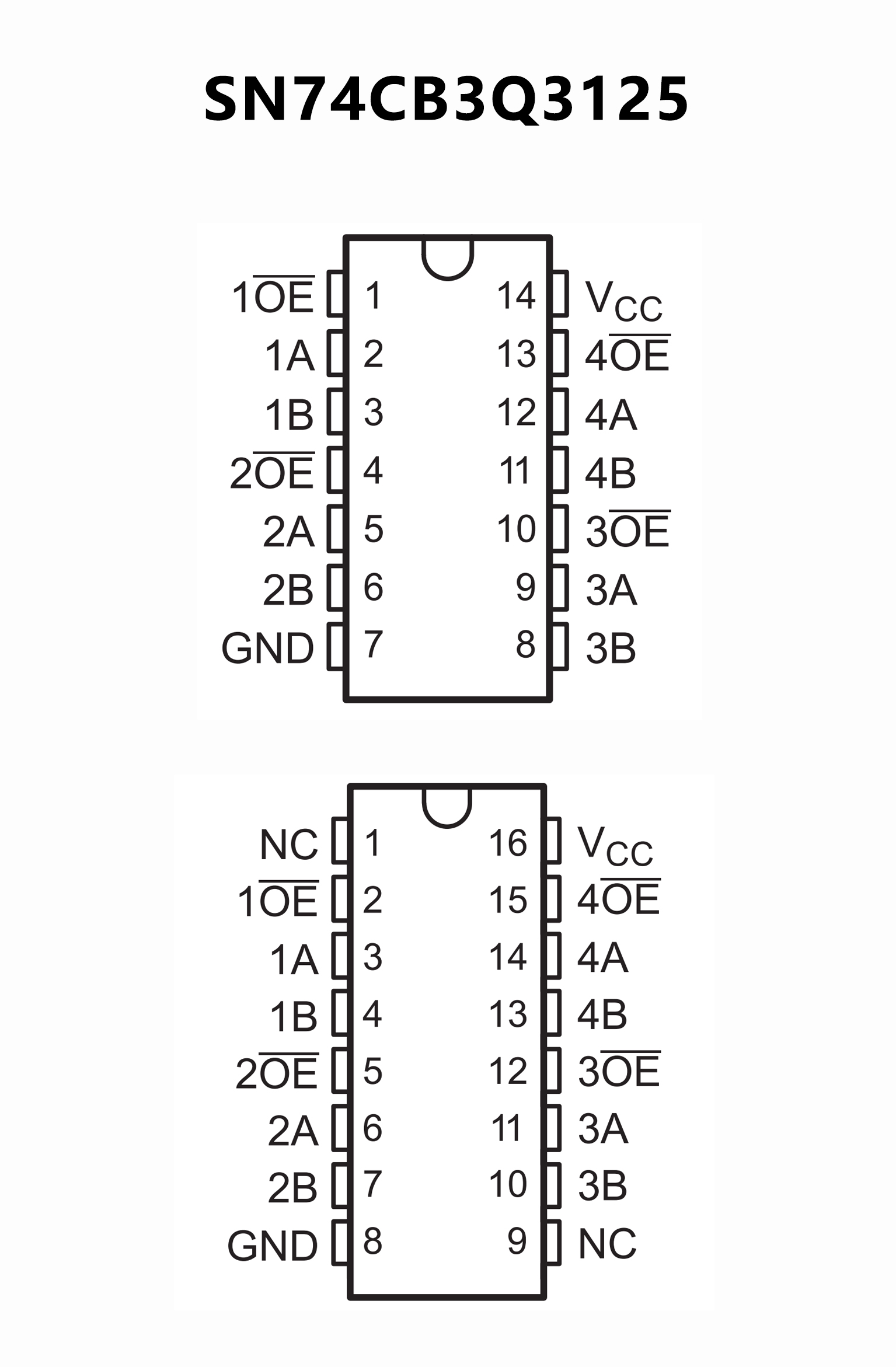

PI3C3125.pdf? Near-Zero Propagation Delay
? High-Bandwidth Data Path (up to 500 MHz(1))
? 5-V Tolerant I/Os With Device Powered Up or
Powered Down
? Low and Flat ON-State Resistance
(ron) Characteristics Over Operating Range
(ron = 3 ? Typ)
? Rail-to-Rail Switching on Data I/O Ports
0-V to 5-V Switching With 3.3-V VCC
0-V to 3.3-V Switching With 2.5-V VCC
? Bidirectional Data Flow With
Near-Zero Propagation Delay
? Low Input and Output Capacitance
Minimizes Loading and Signal Distortion
(Cio(OFF) = 4 pF Typ)Fast Switching
Frequency (fOE = 20 MHz Max)
Data and Control Inputs Provide
Undershoot Clamp Diodes
Low Power Consumption
(ICC = 0.3 mA Typ)
? VCC Operating Range From 2.3 V to 3.6 V
? Data I/Os Support 0-V to 5-V Signaling Levels
(0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V)
? Control Inputs Can Be Driven by TTL,
5-V, or 3.3-V CMOS Outputs
Ioff Supports Partial-Power-Down Mode
Operation Latch-Up Performance
Exceeds 100 mA Per JESD 78, Class II
? ESD Performance Tested Per JESD 22
2000-V Human-Body Model
(A114-B, Class II)
? 1000-V Charged-Device Model (C101)
?Supports Both Digital and Analog
Applications: USB Interface, Differential
Signal Interface, Bus Isolation, Low-Distortion Signal Gating
