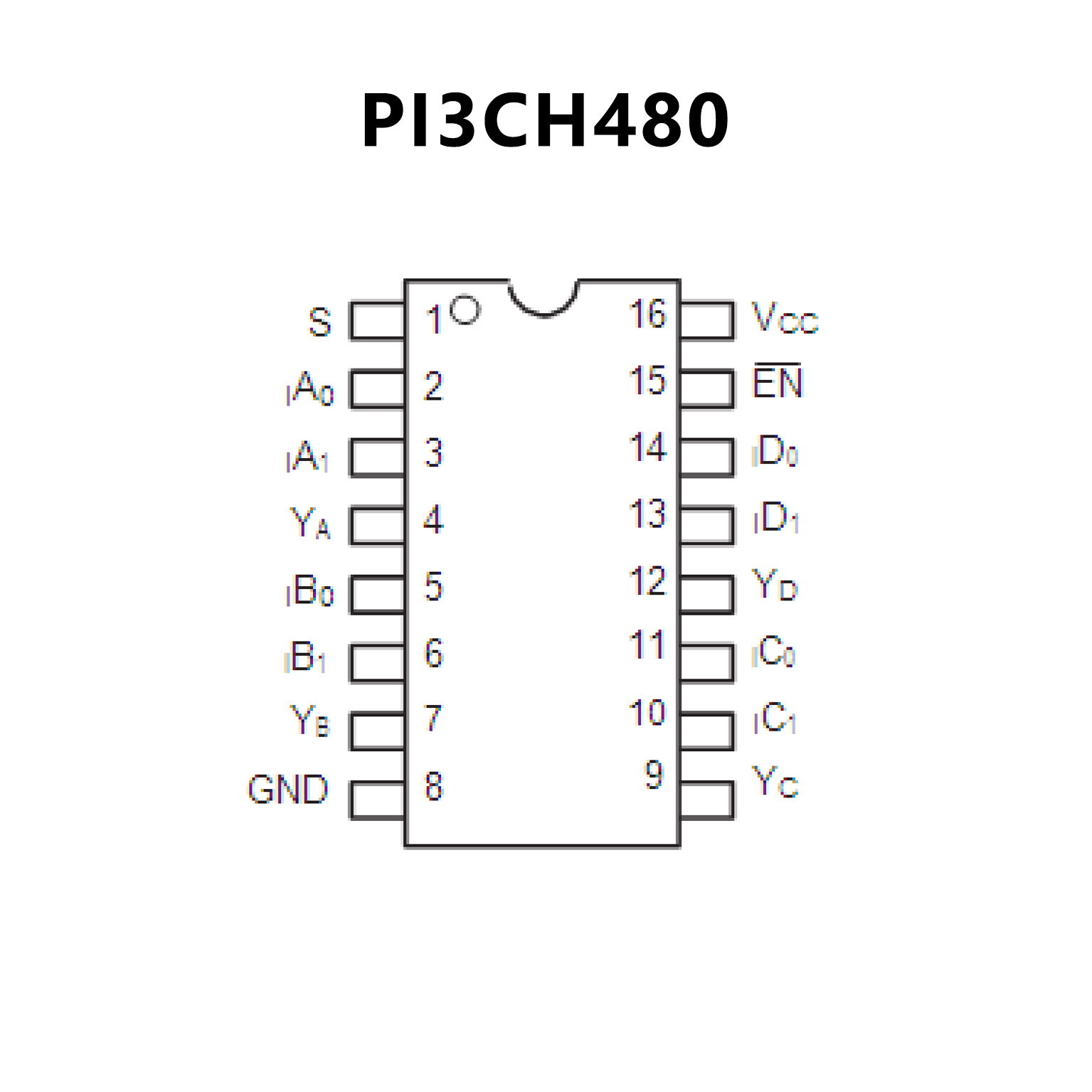

PI3CH480.pdf? Near-Zero Propagation Delay
? 50 Switches Connect Inputs to Outputs
? High Signal Passing Bandwidth (50oMHz)
? Beyond Rail-to-Rail Switching
- 0 to 5V Switching with 3.3V Power Supply
- 0 to 3.3V Switching with 2.5V Power Supply
? 5V I/O Tolerant with Supply in OFF and ON State
? 1.8V,2.5V, and 3.3V Supply Voltage Operation
? Hot Insertion Capable
? Industrial Operating Temperature: -40C to +85°C
? 8kV ESD Protection (Human Body Model)
? Latch-up Performance: >20OmA per JESD17
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? Packaging (Pb-free & Green available):
-16-pin 173-mil Wide Plastic TSSOP (L)
-16-pin 150-mil Wide Plastic QSOP (Q)
-16-pin UQFN3x3-16(ZHD)
? High-bandwidth data path (up to 500MHz)
? 5V Tolerant I/Os with device powered up or powered
down
