High-Speed USB 2.0 (480 Mbps) 1-Port Switch with Full Power Down Feature, PI3USB32 Replace TS3USB31.
PI3USB32
PI3USB32.pdf
PI3USB32.pdfFEATURES
? VDD Operation at 2.8V and 4.3V
? 1.8V Compatible Control-Pin Inputs
? IOFF Supports Full Power-Down Mode Operation
? ron = 6Ω Typical
? Dron <0.35Ω Typical
? Cio(ON) = 5pF Typical
? Low Power Consumption
? ESD Performance
7kV Human-Body Model, per JESD22 spec (A114-B, Class II)
1000-V Charged-Device Model (C101)
?±4kV contact, per IEC61000-4-2
? Wide –3-dB Bandwidth = 2110 MHz Typical
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control
? Packaged in 8-Lead TLLGA (1.5 mm x 1.5 mm)

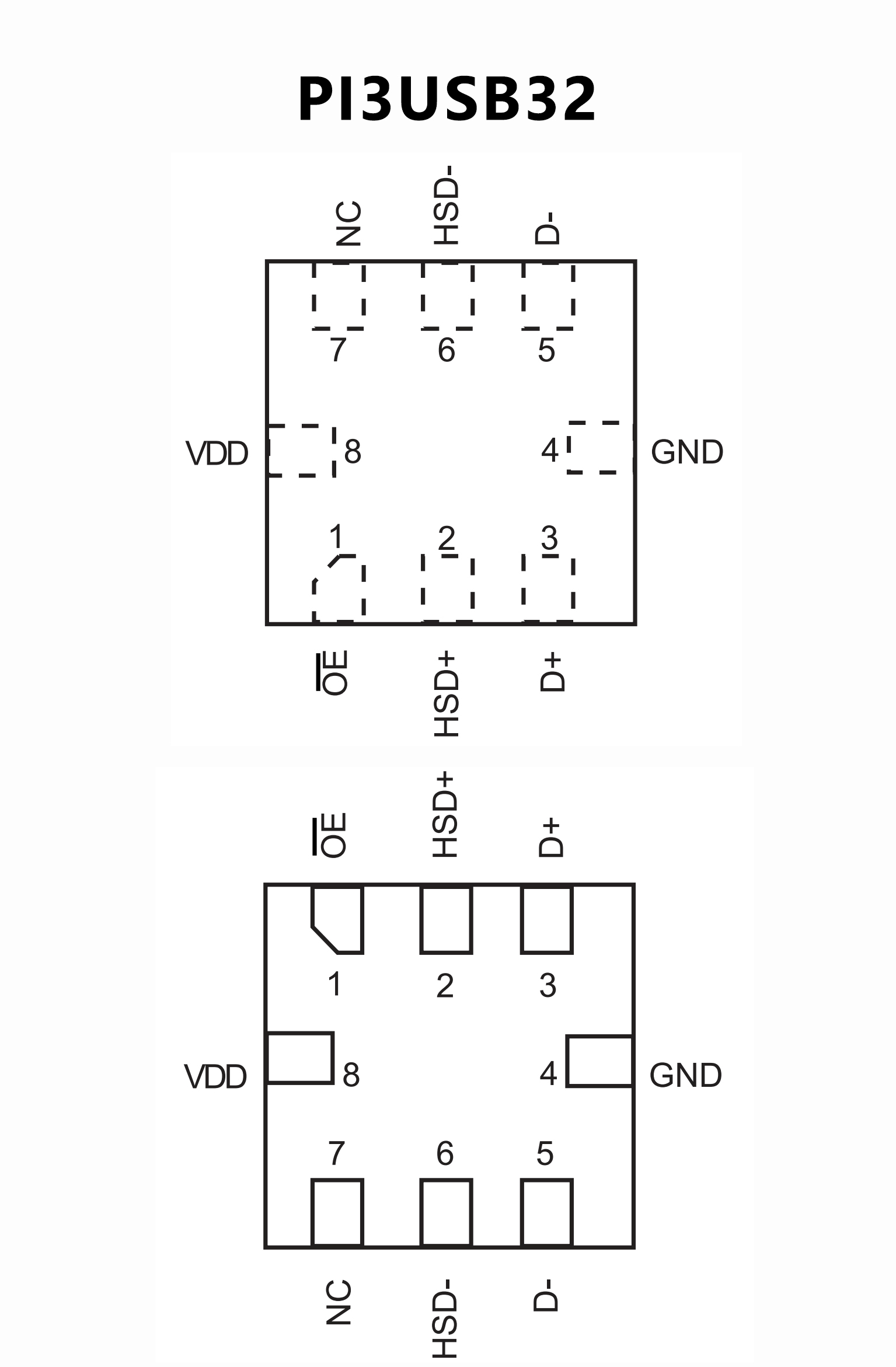

PIN CONFIGUTION
優勢替代
FEATURES
? VCC Operation at 3 V and 4.3 V
? 1.8-V Compatible Control-Pin Inputs
? IOFF Supports Partial Power-Down Mode Operation
? ron = 10 ? Maximum
? Δron <0.35 ? Typical
? Cio(ON) = 6 pF Typical
? Low Power Consumption (1 μA Maximum)
? ESD Performance Tested Per JESD 22
– 6000-V Human-Body Model (A114-B, Class II)
– 1000-V Charged-Device Model (C101)
– 250-V Machine Model (A115-A)
? Wide –3-dB Bandwidth = 1220 MHz Typical
? Packaged in 8-Pin TQFN (1.5 mm × 1.5 mm)

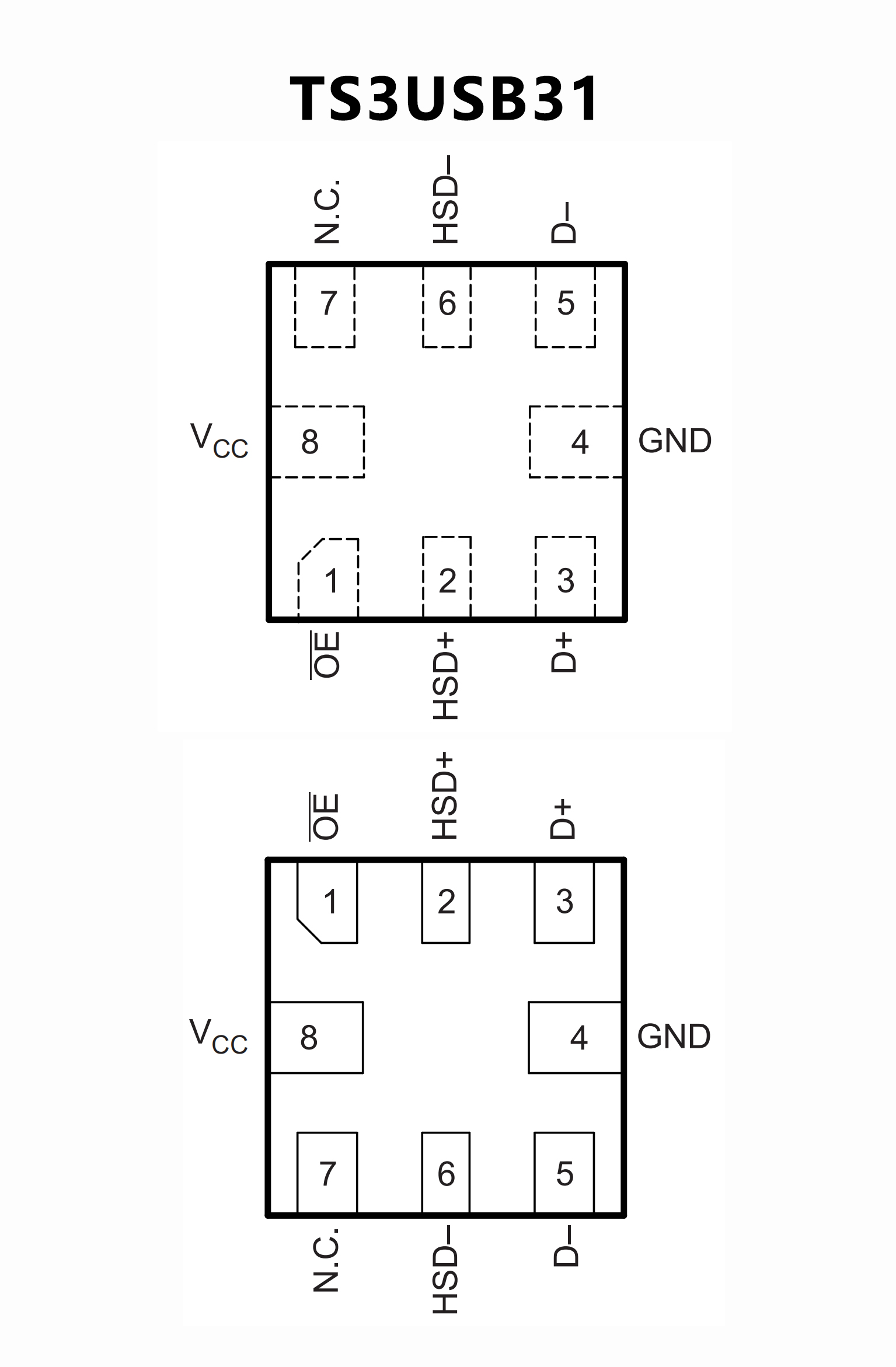

PIN CONFIGUTION
