PI6ULS5V9517.pdf? 2 channel, bidirectional buffer

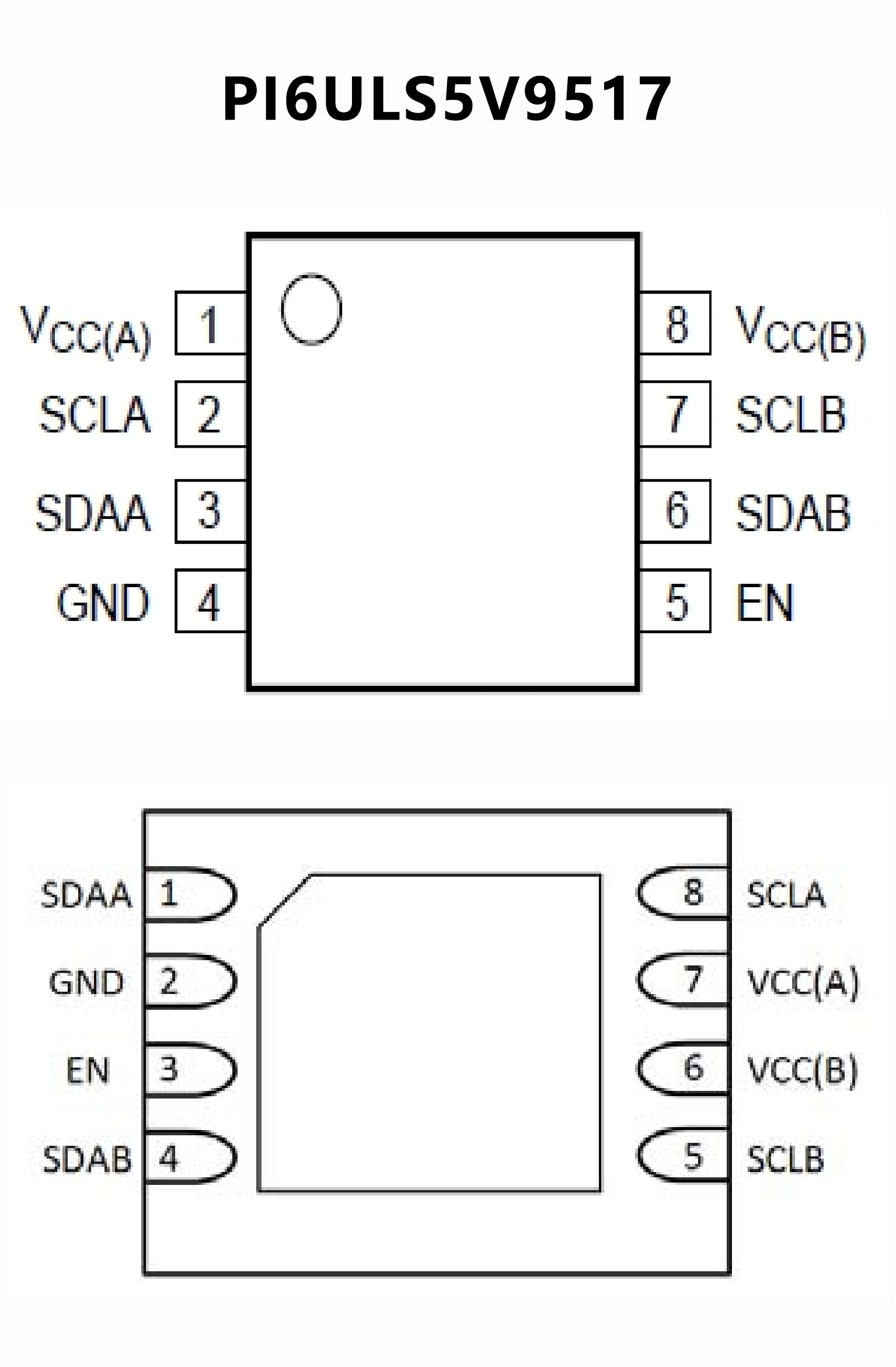

? Package: MSOP-8L, SOIC-8L and DFN2x3-8L,
UQFN1.6x1.6-8L
? Two-Channel Bidirectional Buffer
? I2C Bus and SMBus Compatible
? Operating Supply Voltage Range of 0.9 V to 5.5 V
on A Side
? Operating Supply Voltage Range of 2.7 V to 5.5 V
on B Side
? Voltage-Level Translation From 0.9 V to 5.5 V and
2.7 V to 5.5 V
? Footprint and Function Replacement for PCA9515A
? Active-High Repeater-Enable Input Open-Drain I2C VO
? 5.5-V Tolerant I2C and Enable Input Support Mixed-Mode
Signal Operation
? Lockup-Free Operation
? Accommodates Standard Mode and Fast Mode I2C Devices
and Multiple Masters
? Powered-Off High-Impedance I2C Pins 400-kHz Fast I2C Bus
? Latch-Up Performance Exceeds 100mA Per JESD78, Class Il
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
