SGM2038.pdf? Input Voltage Range: 0.8V to 5.5V
? Bias Voltage Range: 2.5V to 5.5V
? Fixed Output Voltages:
0.8V to 3.6V with 0.05V per Step
? Output Voltage Accuracy: ±0.8%
? 500mA Nominal Output Current
? Low Dropout: 120mV (TYP) at 500mA
? Very Low Bias Input Current: 37μA (TYP)
? Very Low Bias Input Current in Shutdown:
0.01μA (TYP)
? Low Noise: 25μVRMS (TYP)
? Over-Current and Over-Temperature Protections
? Fast Load Transient Response
? Logic Level Enable Input for ON/OFF Control
? -40℃ to +125℃ Operating Temperature Range

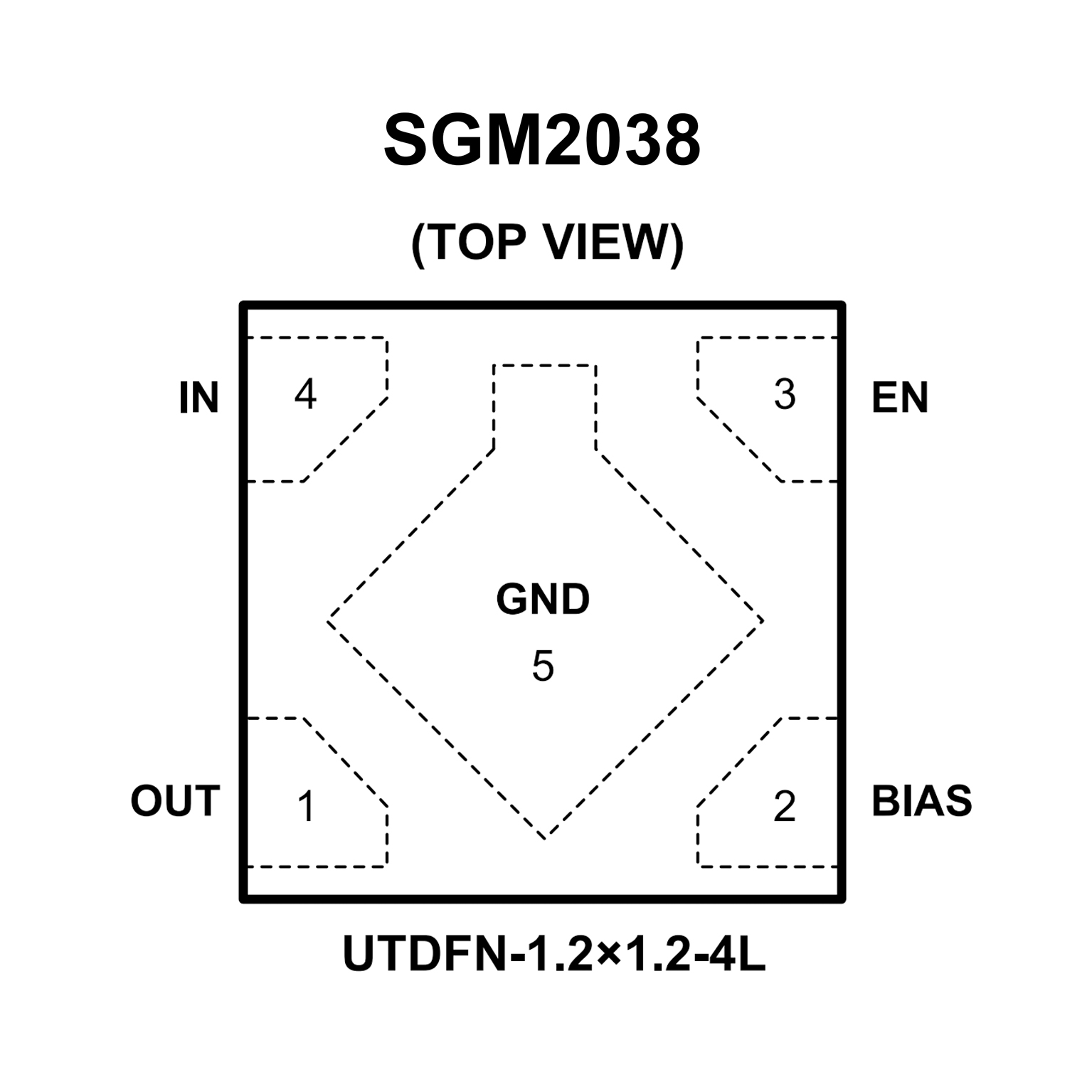

? Available in Green UTDFN-1.2×1.2-4L Package
? Input Voltage Range: 0.8 V to 5.5 V
? Bias Voltage Range: 2.4 V to 5.5 V
? Fixed Voltage Versions Available
? Output Voltage Range: 0.8 V to 2.1 V (Fixed)
? ±1.5% Accuracy over Temperature, 0.5% VOUT @ 25°C
? Ultra?Low Dropout: Max. 150 mV at 500 mA, 1.1 V Output,
3.3 V Bias, 85°C
? Very Low Bias Input Current of Typ. 80 A
? Very Low Bias Input Current in Disable Mode: Typ. 0.5 A
? Logic Level Enable Input for ON/OFF Control
? Output Active Discharge Option Available
? Stable with a 2.2 F Ceramic Capacitor

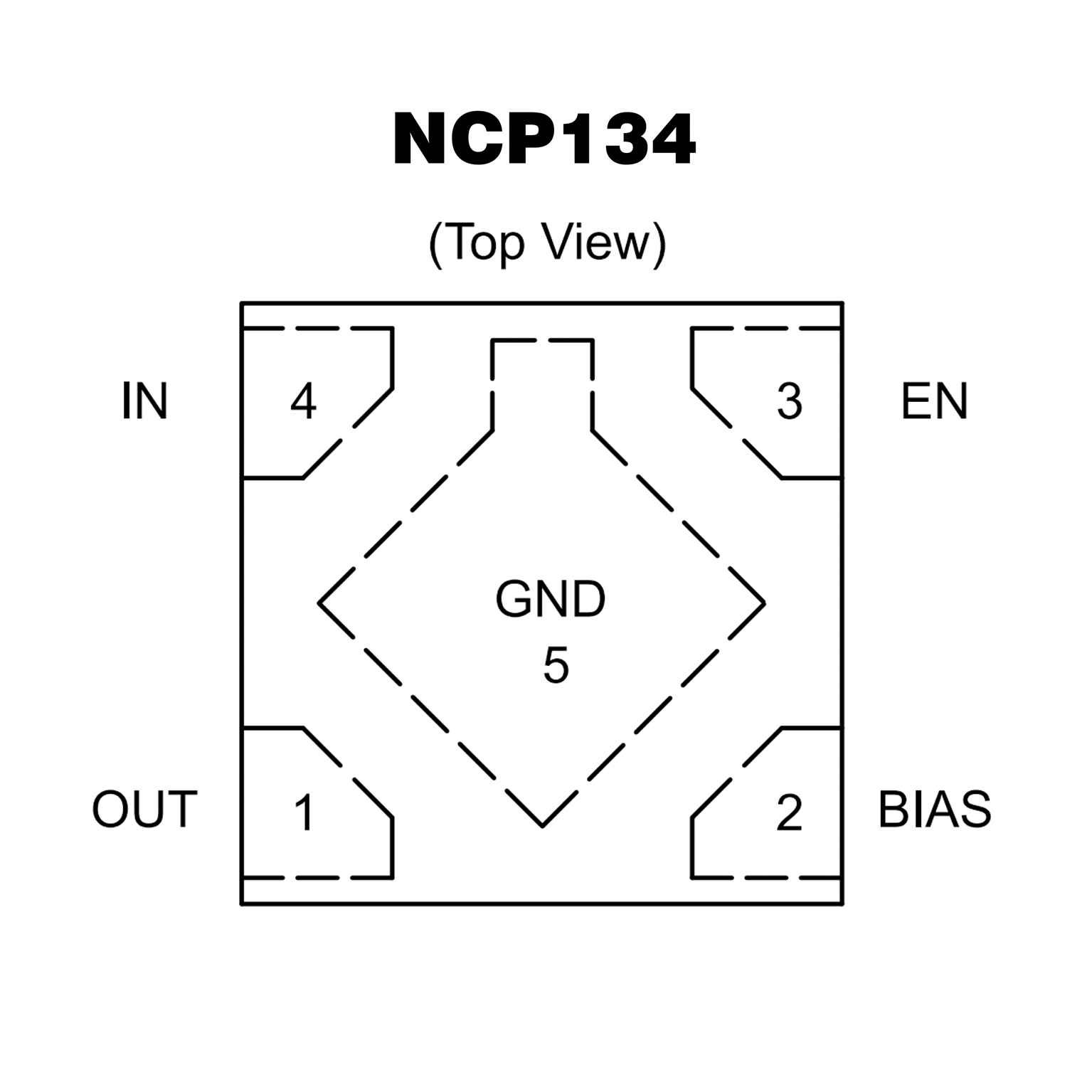

? Available in XDFN4 ? 1.2 mm x 1.2 mm x 0.4 mm Package
? These Devices are Pb?Free, Halogen Free/BFR Free and
are RoHS Compliant
