SGM2054.pdf? Input Voltage: Supports 2.5V Rail and 3.3V Rail
? VLDOIN Voltage Range: 1.1V to 3.5V
? Requires Minimum Output Capacitance of 20μF
(Typically 3 × 10μF MLCCs) for Memory Termination
Applications (DDR)
? PGOOD to Monitor Output Regulation
? EN Input
? REFIN Input Allows for Flexible Input Tracking either
Directly or through Resistor Divider
? Remote Sensing (VOSNS)
? ±10mA Buffered Reference (REFOUT)
? Built-in Soft-Start, UVLO and OCL
? Thermal Shutdown
? Supports DDR2, DDR3, DDR3L, Low-Power DDR3,
DDR4 and DDR5 VTT Applications
? -40℃ to +125℃ Operating Temperature Range

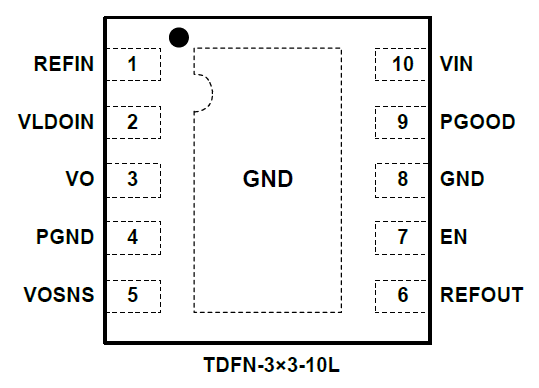

? Available in a Green TDFN-3×3-10L Package
? Input Voltage: Supports 2.5-V Rail and 3.3-V Rail
? VLDOIN Voltage Range: 1.1 V to 3.5 V
? Sink and Source Termination Regulator Includes
Droop Compensation
? Requires Minimum Output Capacitance of 20-μF
(Typically 3 × 10-μF MLCCs) for Memory
Termination Applications (DDR)
? PGOOD to Monitor Output Regulation
? EN Input
? REFIN Input Allows for Flexible Input Tracking
Either Directly or Through Resistor Divider
? Remote Sensing (VOSNS)
? ±10-mA Buffered Reference (REFOUT)
? Built-in Soft Start, UVLO, and OCL
? Thermal Shutdown
? Supports DDR, DDR2, DDR3, DDR3L, Low-
Power DDR3, and DDR4 VTT Applications

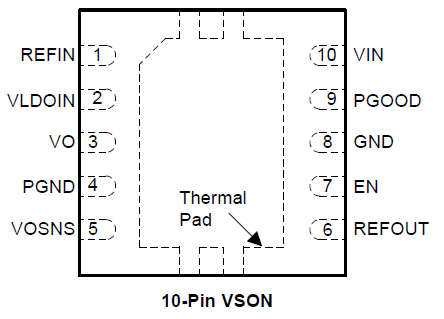

? 10-Pin VSON Package With Thermal Pad
