400mA Triple-Output AMOLED Display Power Supply, SGM3849 Replace RT4722.
SGM3849
SGM3849.pdf
SGM3849.pdfFEATURES
? 2.9V to 4.5V Input Voltage Range
? Synchronous Boost Converter (AVDD)
5.8V to 7.9V Output Voltage (Programmable)
6.1V Default Output Voltage
1.2% Accuracy
100mA Output Current Capability
VIN to VOUT and VOUT to VIN Isolation
? Synchronous Boost Converter (ELVDD)
4.6V to 5.0V Output Voltage (Programmable)
4.6V Default Output Voltage
1.2% Accuracy
400mA Output Current Capability
External Output Voltage Sensing Pin for Load
Drop Compensation
VIN to VOUT and VOUT to VIN Isolation
? Synchronous Inverting Buck-Boost Converter(ELVSS)
-5.4V to -1.4V Output Voltage (Programmable)
-2.5V Default Output Voltage
1.6% Accuracy at -2.5V (±40mV)
400mA Output Current Capability
VIN to VOUT and VOUT to VIN Isolation
? Short Circuit Protection
? Thermal Shutdown
? VELVSS Start-Up Delay: 10ms
? Short Circuit and OLP Detect Time: 1ms
? Available in Green TQFN-3×3-16L Package

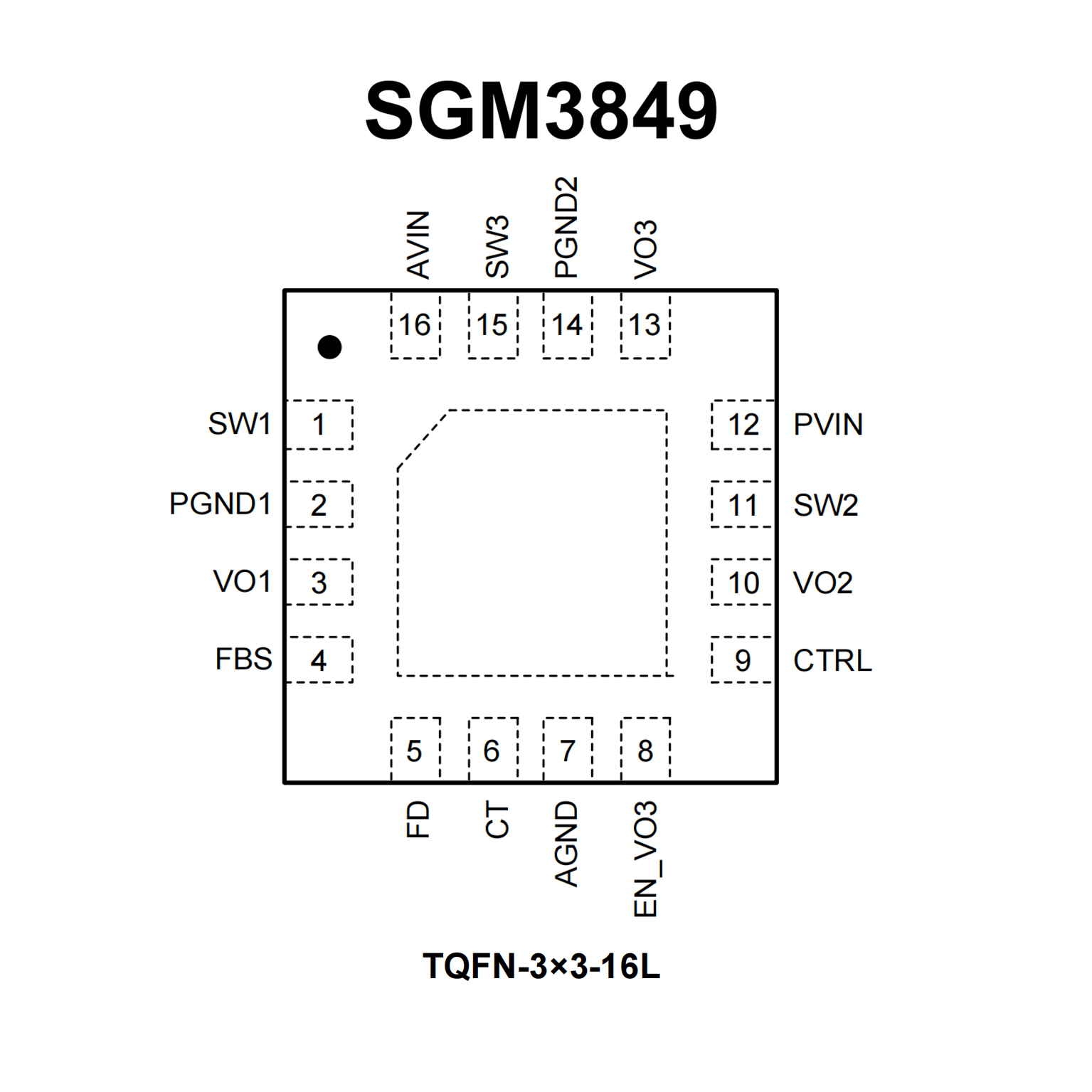

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Boost Converter to Supply Positive AVDD
Voltage from 5.8V to 7.9V
? Boost Converter to Supply AMOLED Positive
Voltage 4.6V
? Inverter Converter to Supply AMOLED Negative
Voltage from ?1.4V to ?5.4V
? Maximum Output Current up to 300mA for
AMOLED Positive & Negative Power Supply
? Maximum Output Current up to 55mA for AVDD
Output Voltage
? Typical Peak Efficiency : 90% (40mA to 150mA)
? PWM Mode @ 1.5MHz Switching Frequency
? High Output Voltage Accuracy
? Excellent Line and Load Transient
? Excellent Line and Load Regulation
? Programmable Negative and AVDD Voltage by
SWIRE Pin
? Fast Outputs Discharge Function
? Low Quiescent Current < 1?A in Shutdown Mode
? Internal Soft-Start to limit Inrush Current
? Over-Temperature Protection (OTP)
? Over-Current Protection (OCP)
? Short Circuit Protection (SCP)

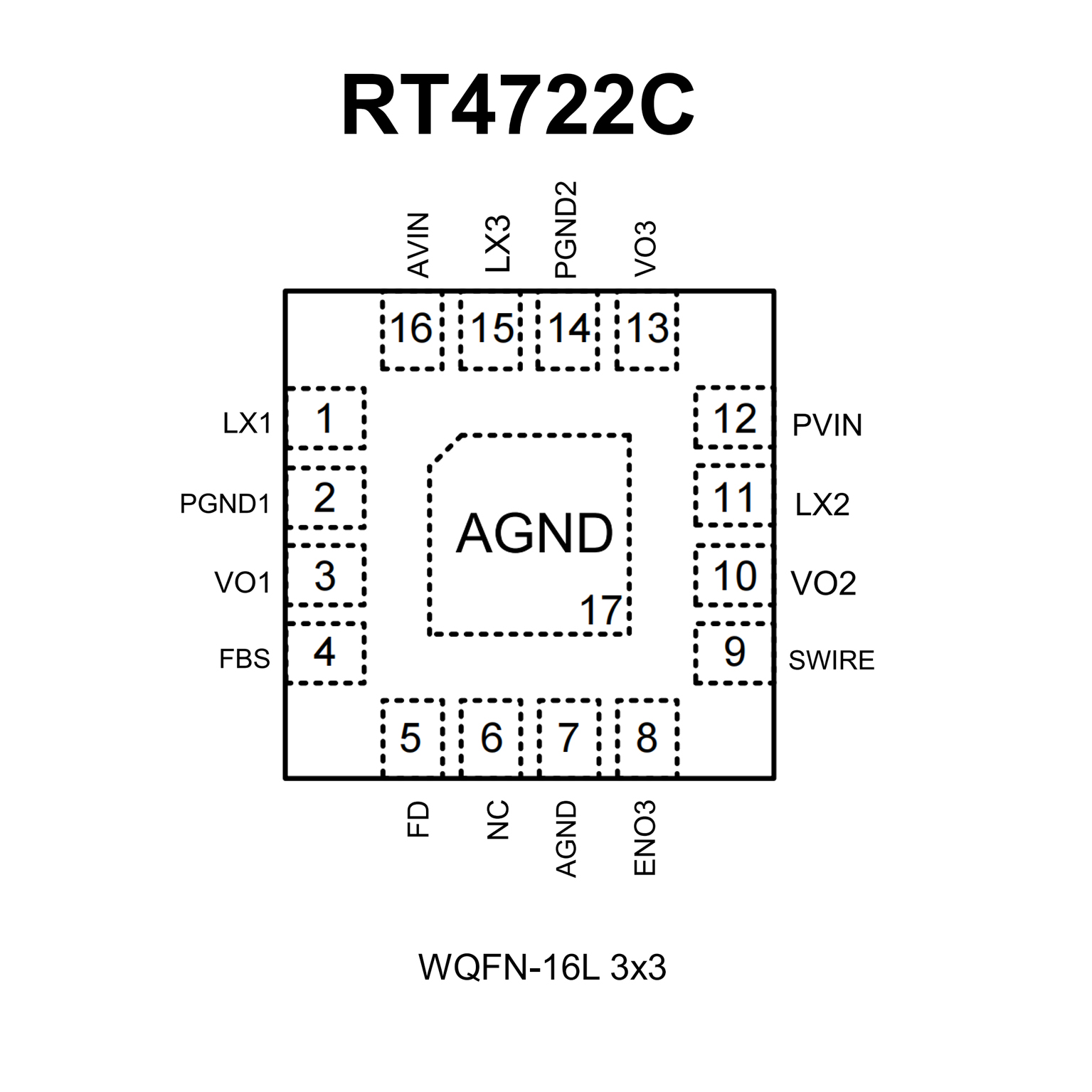

PIN CONFIGUTION
