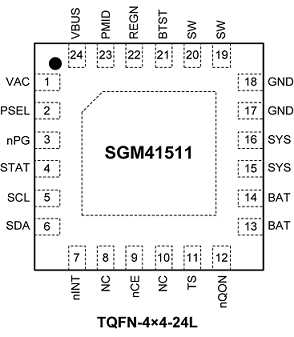

SGM41511.pdf? High Efficiency, 1.5MHz, Synchronous Buck Charger
? USB On-The-Go (OTG) Support (Boost Mode)
? Single Input for USB or High Voltage Adapters
? High Battery Discharge Efficiency with 28mΩ Switch
? Narrow Voltage DC (NVDC) Power Path Management
? Ship Mode, Wake-Up and Full System Reset Capability
by Battery FET Control
? Flexible Autonomous and I2C Operation Modes for Optimal
System Performance
? Fully Integrated Switches, Current Sense and Compensation
? 10μA Ship Mode Low Battery Leakage Current
? High Accuracy
? Safety

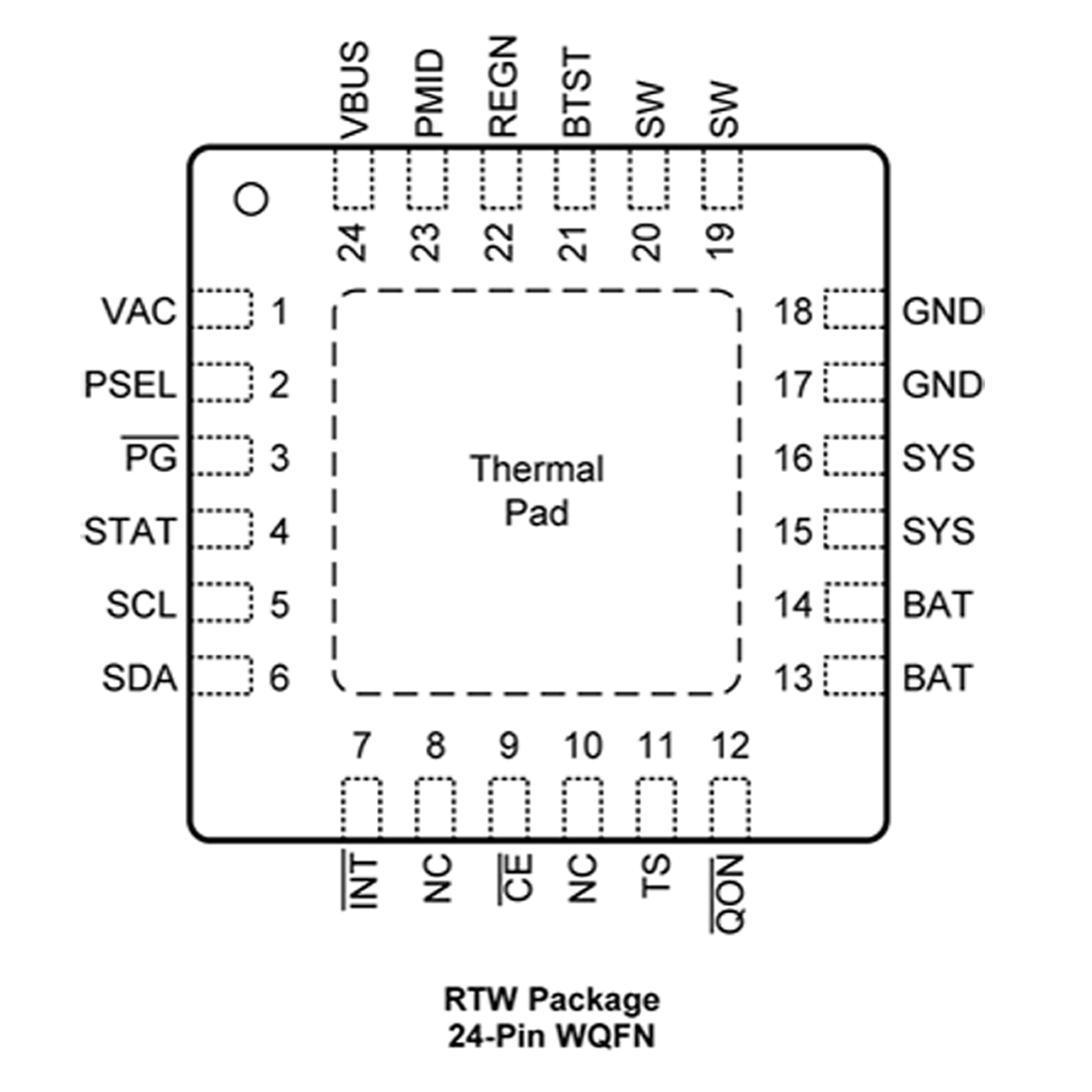

? High-Efficiency, 1.5-MHz, Synchronous Switch-Mode
? Supports USB On-The-Go (OTG)
? Single Input to Support USB Input and High
Voltage Adapters
? High Battery Discharge Efficiency
? Narrow VDC (NVDC) Power Path Management
? BATFET Control to Support Ship Mode
? Flexible Autonomous and I2C Mode
? High Integration Includes All MOSFETs, Current
Sensing and Loop Compensation
? 17-μA Low Battery Leakage Current to Support Ship Mode
? High Accuracy
? Safety
