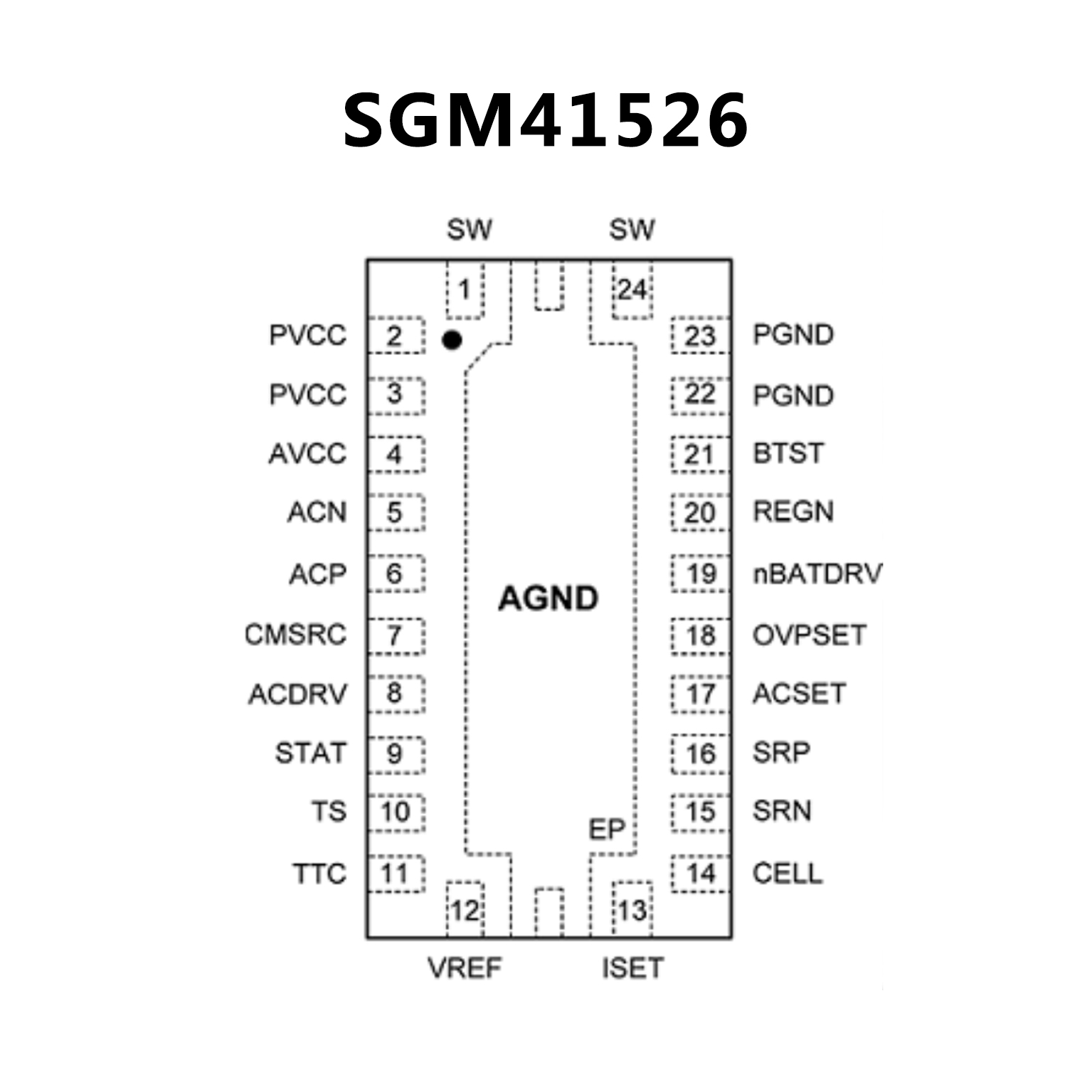

SGM41526.pdf? 4A Synchronous 1.6MHz PWM Charger
? Up to 95.2% Charge Efficiency
? 30V Absolute Maximum Input Voltage Rating
? 4.5V to 22V Input Operating Voltage Range
? Dynamic Power Management (DPM)
? Select 2-, 3-, or 4-Cell with 4.2V/Cell
? Less than 18μA Battery Current (No Adapter)
? Less than 1.3mA Input Current (Charge Disabled)
? Safety
- Thermal Regulation, Thermal Shutdown
- Battery Thermistor Sense Hot/Cold Charge Suspend
- Input Under-Voltage Lockout (UVLO)
- Input Over-Voltage (ACOV) Protection

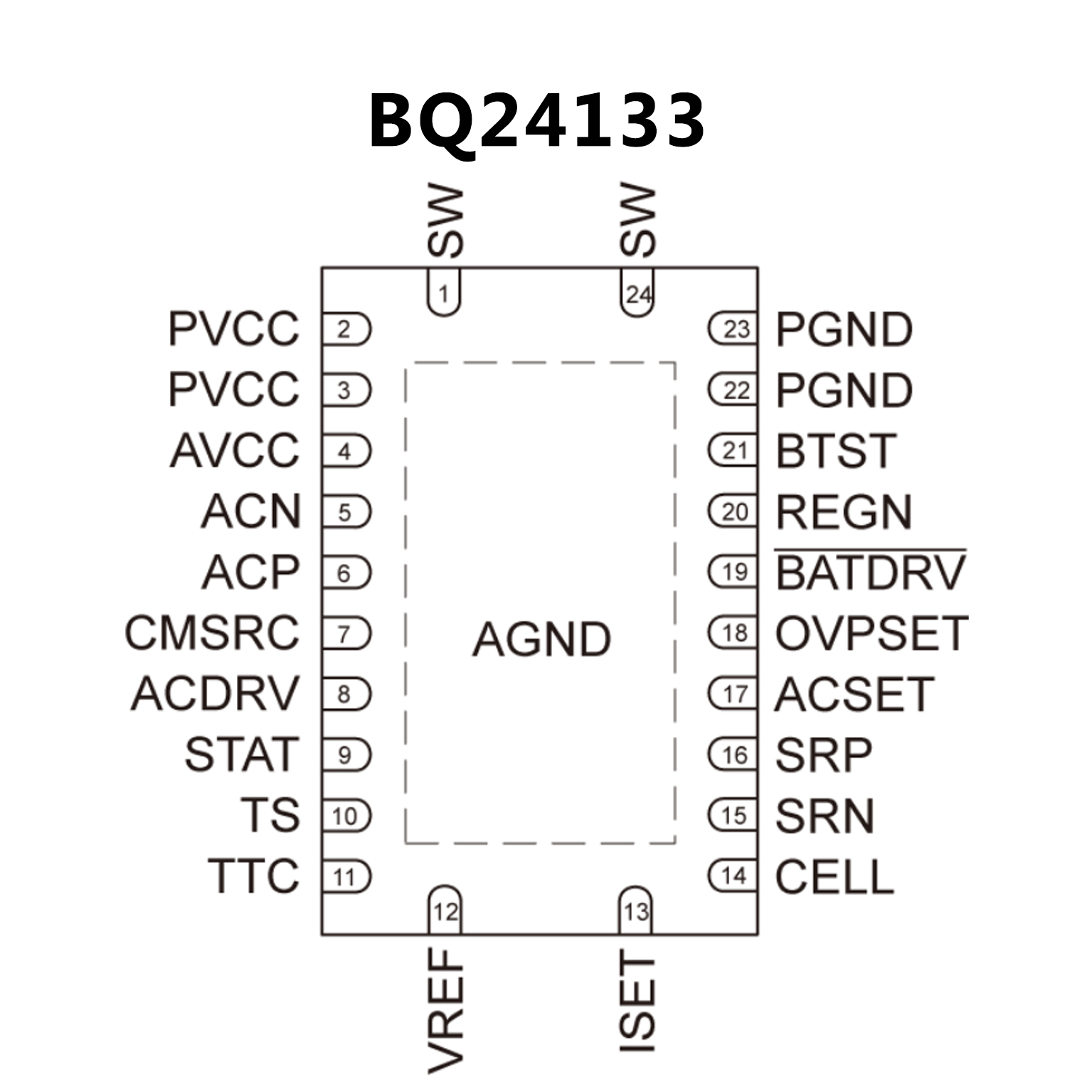

? 1.6-MHz Synchronous Switched-Mode Charger
? Up to 92% Efficiency
? 30V Input Rating With Adjustable OvervoltageProtection
? 1-Cell, 2-Cell, or 3-Cell With 4.2 V/Cell
? High Integration
– Automatic Power Path Selector Between
? Adapter and Battery
– Integrated 20-V Switching MOSFETs
– Integrated Bootstrap Diode
– Internal Digital Soft Start
? Safety
– Thermal Shutdown
– Cycle-by-Cycle Current Limit
