6MHz, 600mA Synchronous Step-Down Regulator,SGM6032 Replace TPS62624.
SGM6032
SGM6032.pdf
SGM6032.pdfFEATURES
? Wide Input Voltage Range from 2.3 V to 5.5 V
? 6 MHz Regulated Frequency Operation
? 90% Efficiency at 6 MHz Operation
? 31 μA Quiescent Current
? Best in Class Load and Line Transient
? ±2% Total DC Voltage Accuracy
? Automatic PFM/PWM Mode Switching
? Low Ripple Light-Load PFM Mode
? Internal Soft Start, 120-μs Start-Up Time
? Integrated Active Power-Down Sequencing
(TPS62624 only)
? Current Overload and Thermal Shutdown Protection
? Three Surface-Mount External Components Required
(One MLCC Inductor, Two Ceramic Capacitors)
? Complete Sub 1-mm Component Profile Solution
? Total Solution Size < 12 mm2
? Available in a 6-Pin NanoFree? (WCSP)
Regular and Ultra-Thin Packaging

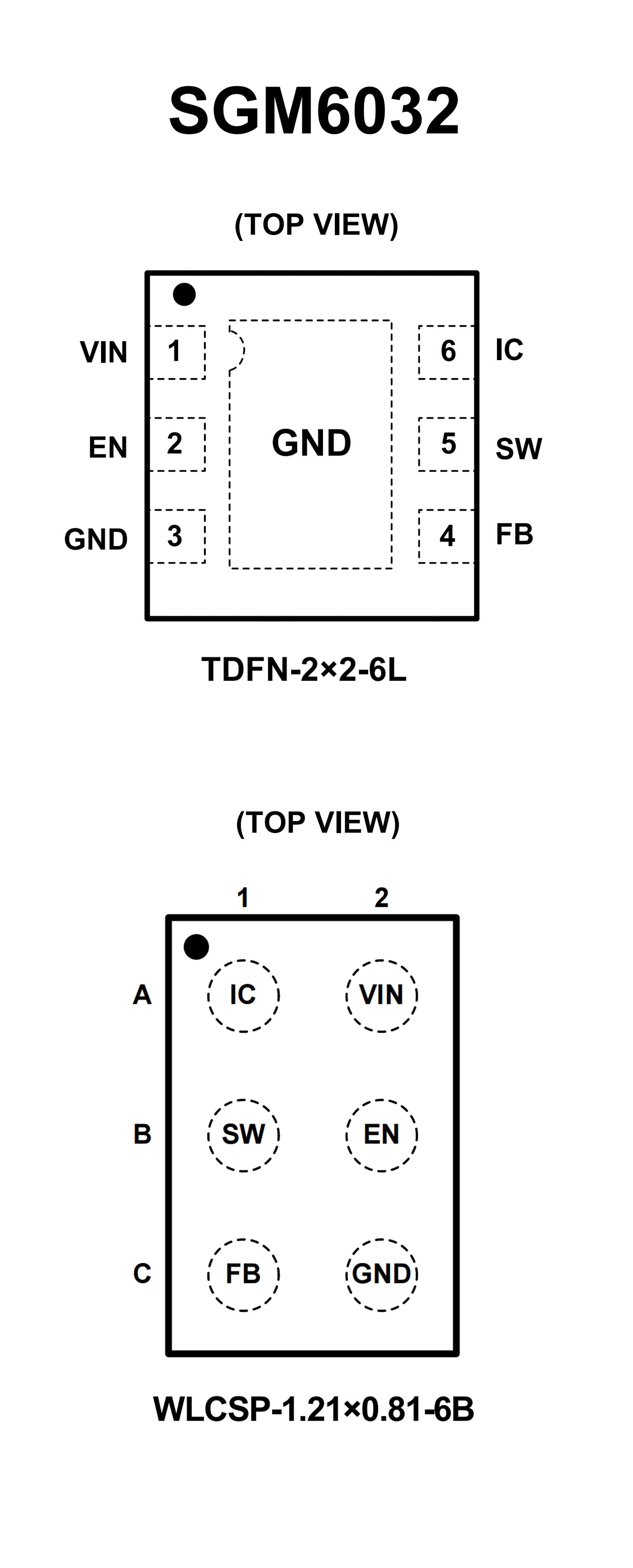

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Wide Input Voltage Range from 2.3 V to 5.5 V
? 6 MHz Regulated Frequency Operation
? 90% Efficiency at 6 MHz Operation
? 31 μA Quiescent Current
? Best in Class Load and Line Transient
? ±2% Total DC Voltage Accuracy
? Automatic PFM/PWM Mode Switching
? Low Ripple Light-Load PFM Mode
? Internal Soft Start, 120-μs Start-Up Time
? Integrated Active Power-Down Sequencing
(TPS62624 only)
? Current Overload and Thermal Shutdown
Protection
? Three Surface-Mount External Components
Required (One MLCC Inductor, Two Ceramic
Capacitors)
? Complete Sub 1-mm Component Profile Solution
? Total Solution Size < 12 mm2
? Available in a 6-Pin NanoFree? (WCSP)
Regular and Ultra-Thin Packaging

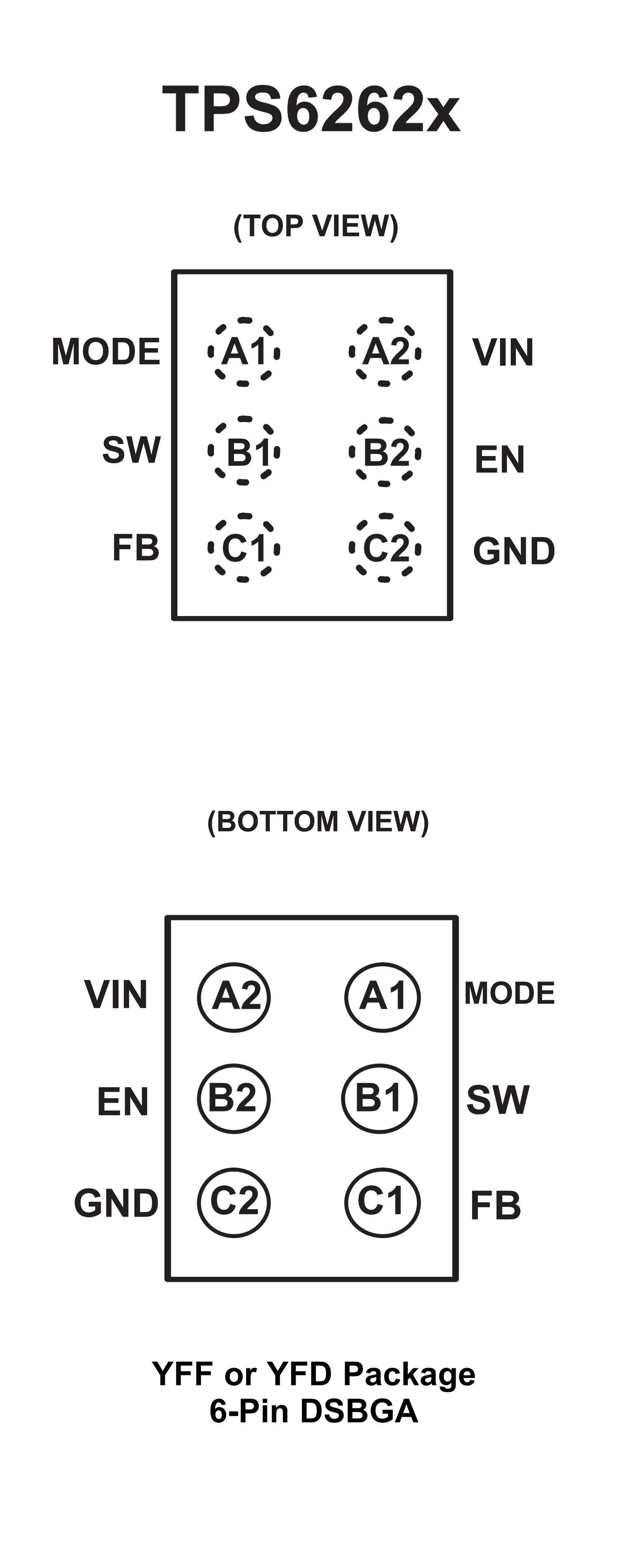

PIN CONFIGUTION
