10A Fully-Integrated Synchronous Boost Converter, SGM6610 Replace TPS61088.
SGM6610
SGM6610.pdf
SGM6610.pdfFEATURES
? Input Voltage Range: 2.7V to 12V
? Output Voltage Range: 4.5V to 12.6V
? 10A Switch Current
? Up to 91% Efficiency at VIN = 3.3V, VOUT = 9V and
IOUT = 3A
? Mode Selection Between PFM Mode and Forced
PWM Mode at Light Load
? 1μA Current into VIN Pin during Shutdown
? Resistor-Programmable Switch Peak Current Limit
? Adjustable Switching Frequency: 200kHz to 2.2MHz
? Programmable Soft-Start
? Output Over-Voltage Protection at 13.2V
? Cycle-by-Cycle Over-Current Protection
? Thermal Shutdown
? Available in Green TQFN-4.5×3.5-20L Package

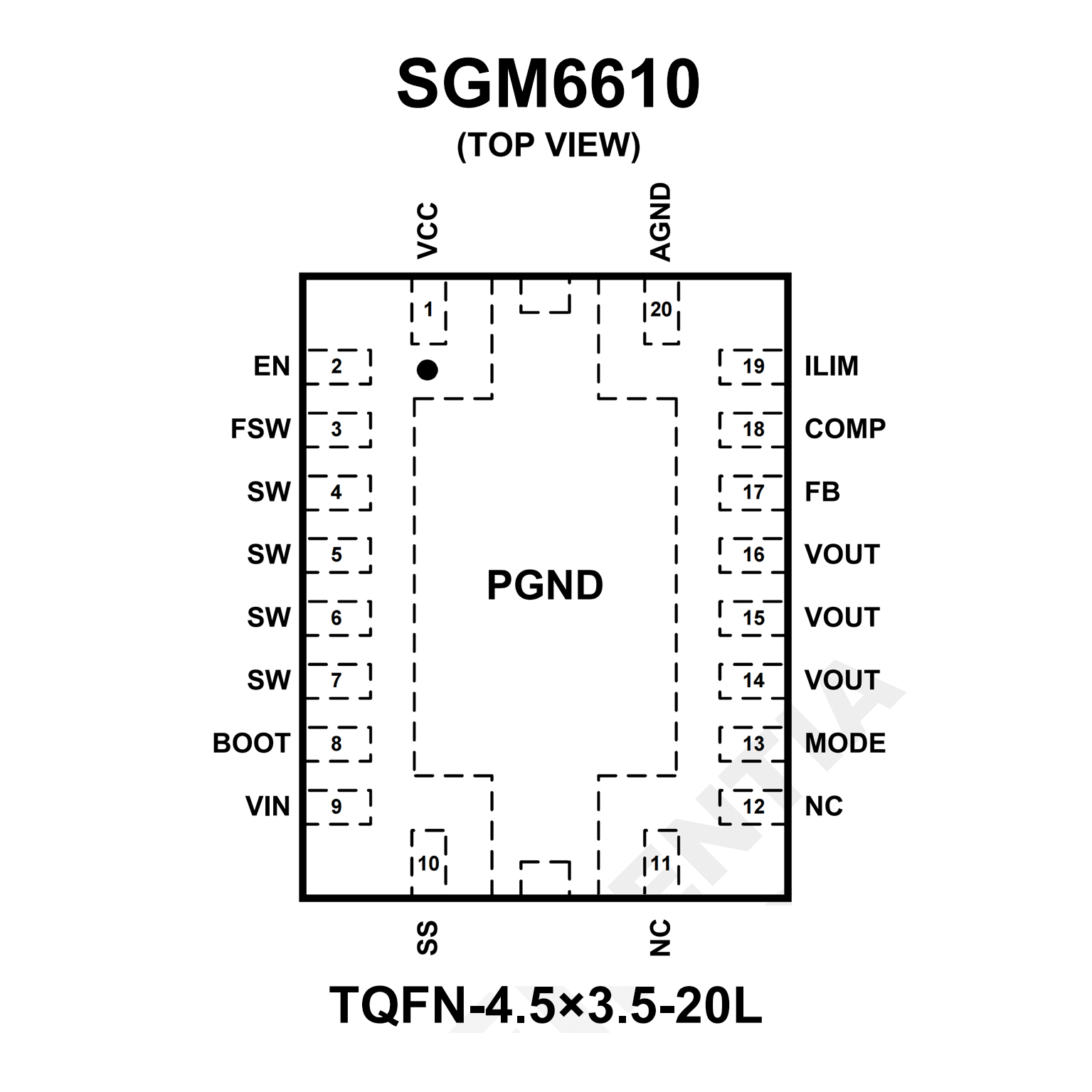

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Input Voltage Range: 2.7 to 12 V
? Output Voltage Range: 4.5 to 12.6 V
? 10-A Switch Current
? Up to 91% Efficiency at VIN = 3.3 V, VOUT = 9 V,
and IOUT = 3 A
? Mode Selection Between PFM Mode and Forced
PWM Mode at Light Load
? 1.0 μA Current into VIN Pin during Shutdown
? Resistor-Programmable Switch Peak Current Limit
? Adjustable Switching Frequency: 200 kHz to 2.2
MHz
? Programmable Soft Start
? Output Overvoltage Protection at 13.2 V
? Cycle-by-Cycle Overcurrent Protection
? Thermal Shutdown
? 4.50-mm × 3.50-mm 20-Pin VQFN Package
? Create a Custom Design Using the TPS61088
with the WEBENCH Power Designer

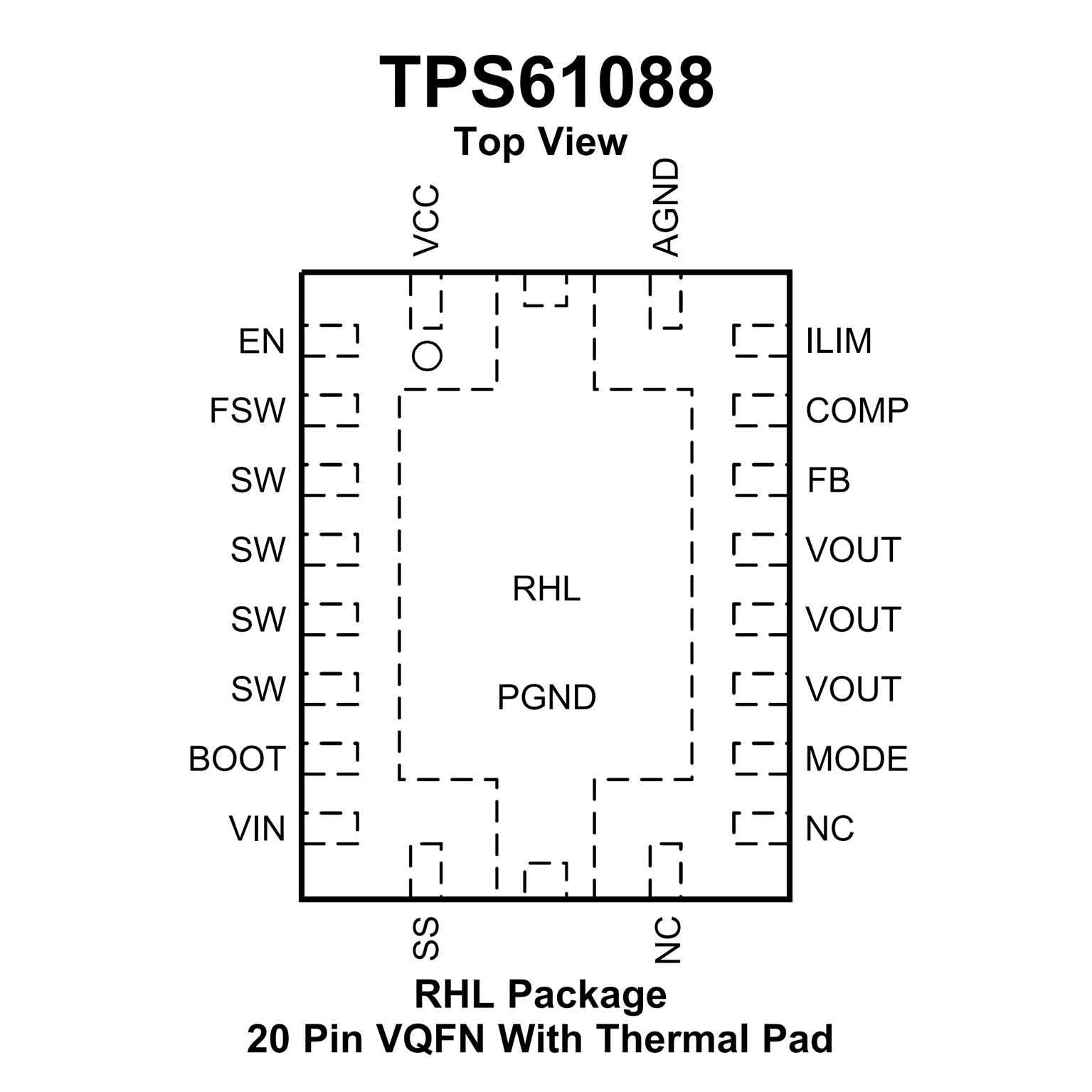

PIN CONFIGUTION
