Nano power operational Amplifier,SGM8045 Replace MCP6141.
SGM8045
SGM8045.pdf
SGM8045.pdfFEATURES
? Low Quiescent Current: 710nA (TYP)
? Rail-to-Rail Input and Output
? Gain Bandwidth Product: 100kHz (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Stable for Gains of 10
? -40°C to +85°C Operating Temperature Range
? Available in Green SOT-23-5L, SOP8 and MSOP8 Packages

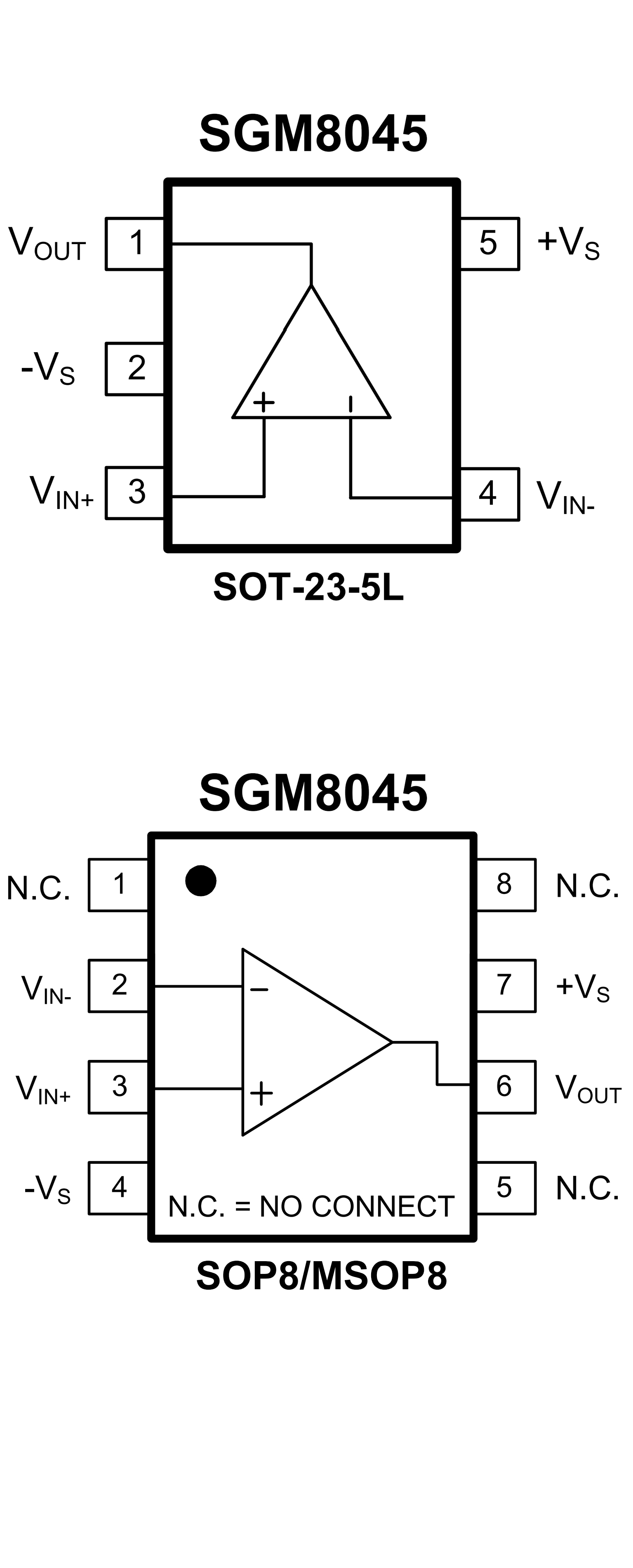

PIN CONFIGUTION
優勢替代
FEATURES
? Low Quiescent Current: 600 nA/amplifier (typical)
? Gain Bandwidth Product: 100 kHz (typical)
? Stable for gains of 10 V/V or higher
? Rail-to-Rail Input/Output
? Wide Supply Voltage Range: 1.4V to 6.0V
? Available in Single, Dual, and Quad
? Chip Select (CS) with MCP6143
? Available in 5-lead and 6-lead SOT-23 Packages
? Temperature Ranges:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C

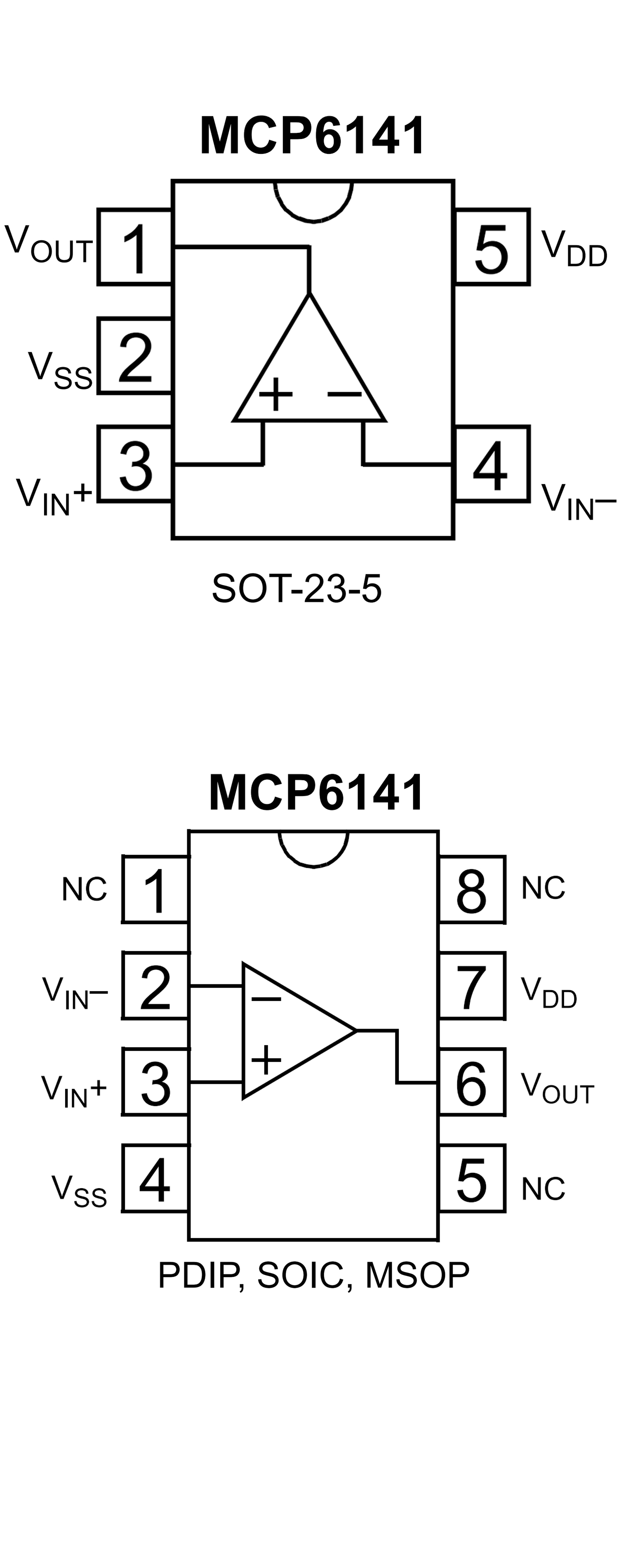

PIN CONFIGUTION
