High Speed Operational Amplifier, Replace OPA2301
SGM80582
SGM80582.pdf
SGM80582.pdfFEATURES
? Unity-Gain Bandwidth: 220MHz
? Wide Bandwidth: 100MHz GBP
? High Slew Rate: 160V/μs
? Low Noise: 7nV/Hz at 1MHz
? Rail-to-Rail Input and Output
? High Output Current: 150mA (TYP)
? Excellent Video Performance:
Diff Gain: 0.01%, Diff Phase: 0.1°
0.1dB Gain Flatness: 30MHz
? Low Input Bias Current: 2pA
? Quiescent Current: 4.5mA/Amplifier (TYP)

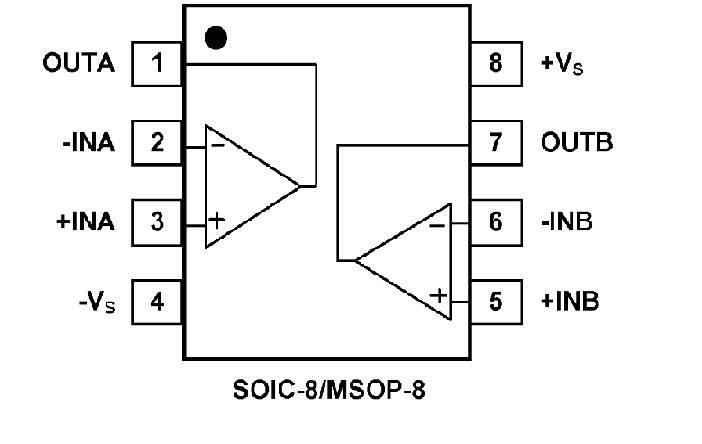

PIN CONFIGUTION
優勢替代
FEATURES
? High Bandwidth: 150MHz
? 16-Bit Settling in 150ns
? Low Noise: 3nV/√Hz
? Low Distortion: 0.003%
? Low Power: 9.5mA (typ) on 5.5V
? Shutdown to 5μA
? Unity-Gain Stable
? Excellent Output Swing:
(V+) ? 100mV to (V?) + 100mV
? Single Supply: +2.7V to +5.5V
PIN CONFIGUTION
