Micro Power operational Amplifier,SGM8534 Replace OPA4347.
SGM8534
SGM8534.pdf
SGM8534.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? Unity Gain Stable
? Gain-Bandwidth Product: 500kHz
? Very Low Input Bias Current: 0.5pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range:
-0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 18μA/Amplifier
? Small Packaging:
SGM8534 Available in Green SOIC-14 and
TSSOP-14 Packages

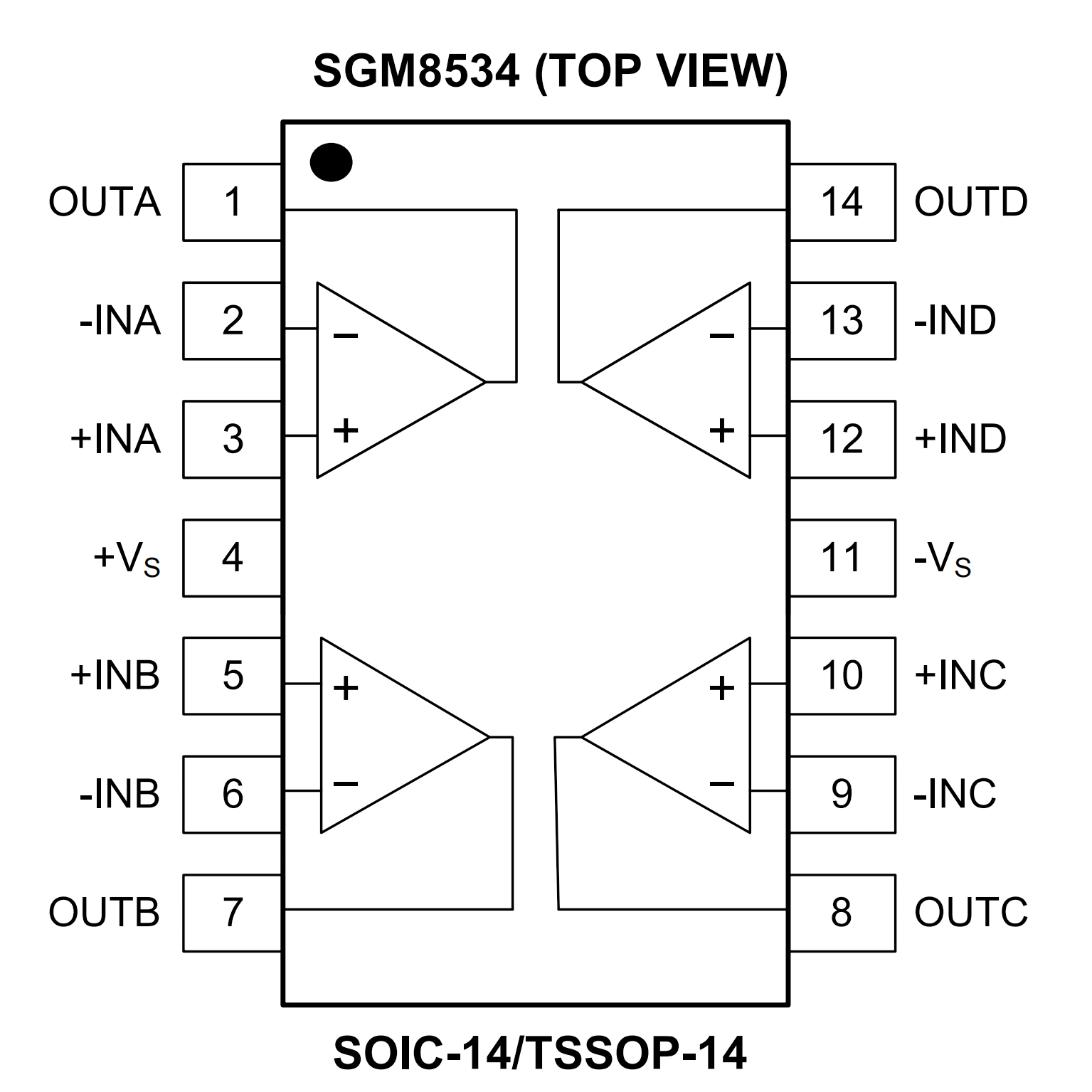

PIN CONFIGUTION
優勢替代
FEATURES
? LOW IQ: 20μA
? microSIZE PACKAGES: WCSP-8, SC70-5
SOT23-5, SOT23-8, and TSSOP-14
? HIGH SPEED/POWER RATIO WITH
BANDWIDTH: 350kHz
? RAIL-TO-RAIL INPUT AND OUTPUT
? SINGLE SUPPLY: 2.3V to 5.5V
PIN CONFIGUTION
