Micro Power Operational Amplifier, SGM8536 Replace OPA2313.
SGM8536
SGM8536.pdf
SGM8536.pdfFEATURES
? Rail-to-Rail Output
? Low Input Offset Voltage: 0.6mV (TYP)
? Unity Gain Stable
? Gain Bandwidth Product: 1.5MHz
? Supply Voltage Range: 1.8V to 5.5V
? Low Supply Current: 8μA/Amplifier (TYP)
? Small Packaging:
SGM8536 Available in MSOP-8 and SOIC-8

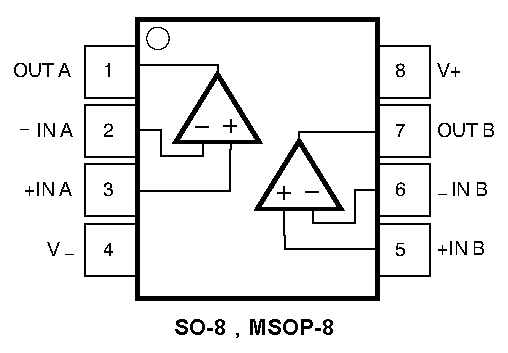

PIN CONFIGUTION
優勢替代
FEATURES
? Low IQ: 50 μA/ch
? Wide Supply Range: 1.8 V to 5.5 V
? Low Noise: 25 nV/√Hz at 1 kHz
? Gain Bandwidth: 1 MHz
? Low Input Bias Current: 0.2 pA
? Low Offset Voltage: 0.5 mV
? Unity-Gain Stable
? Internal RF/EMI Filter
? Extended Temperature Range: –40°C to +125°C

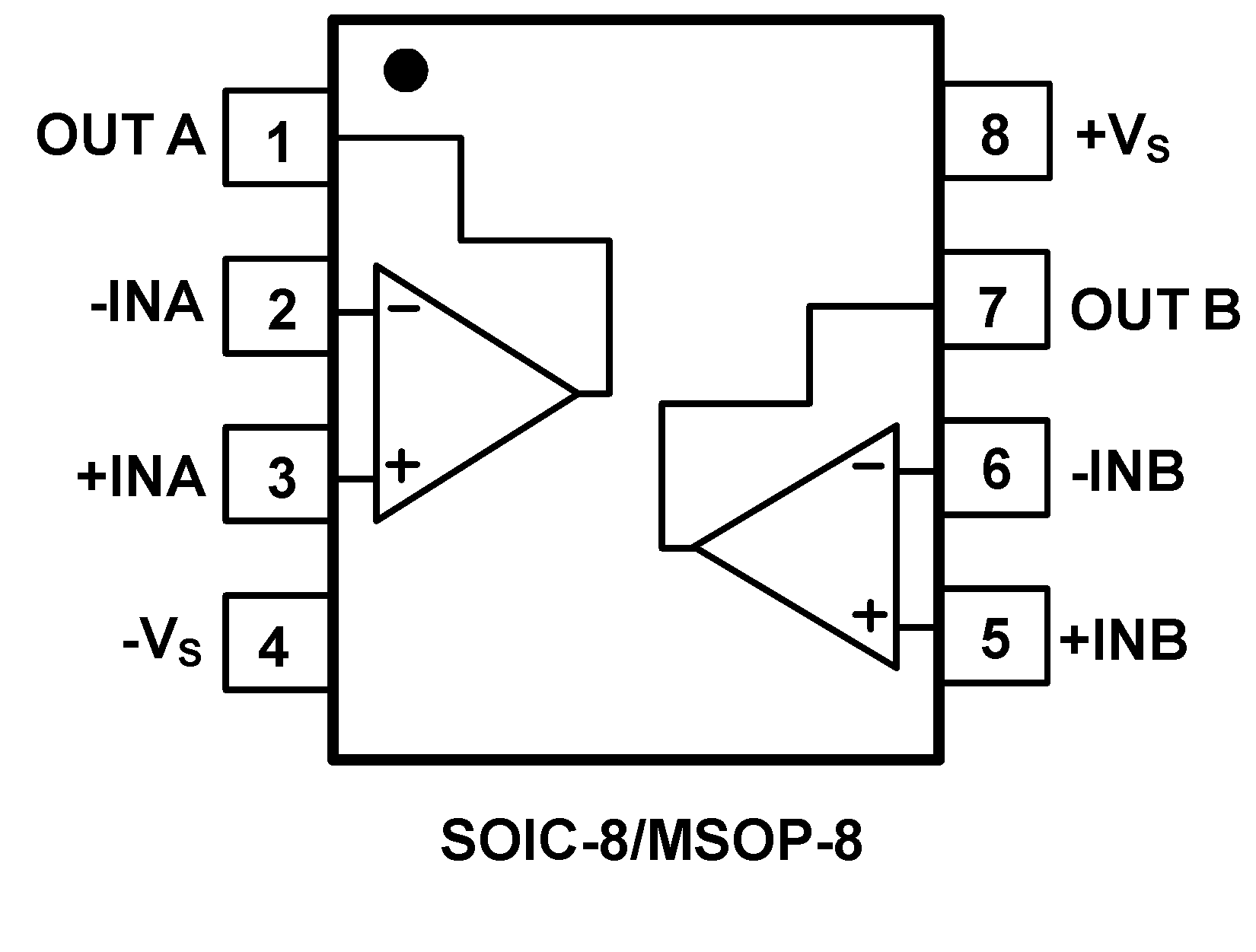

PIN CONFIGUTION
