Low Noise Operational Amplifier,SGM8632 Replace TLV2362.
SGM8632
SGM8632.pdf
SGM8632.pdfFEATURES
? Rail-to-Rail Input and Output：3.5mV Maximum VOS
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current
SGM8632: 480μA/Amplifier (TYP)
? Small Packaging
SGM8632 Available in Green MSOP-8 and SOIC-8

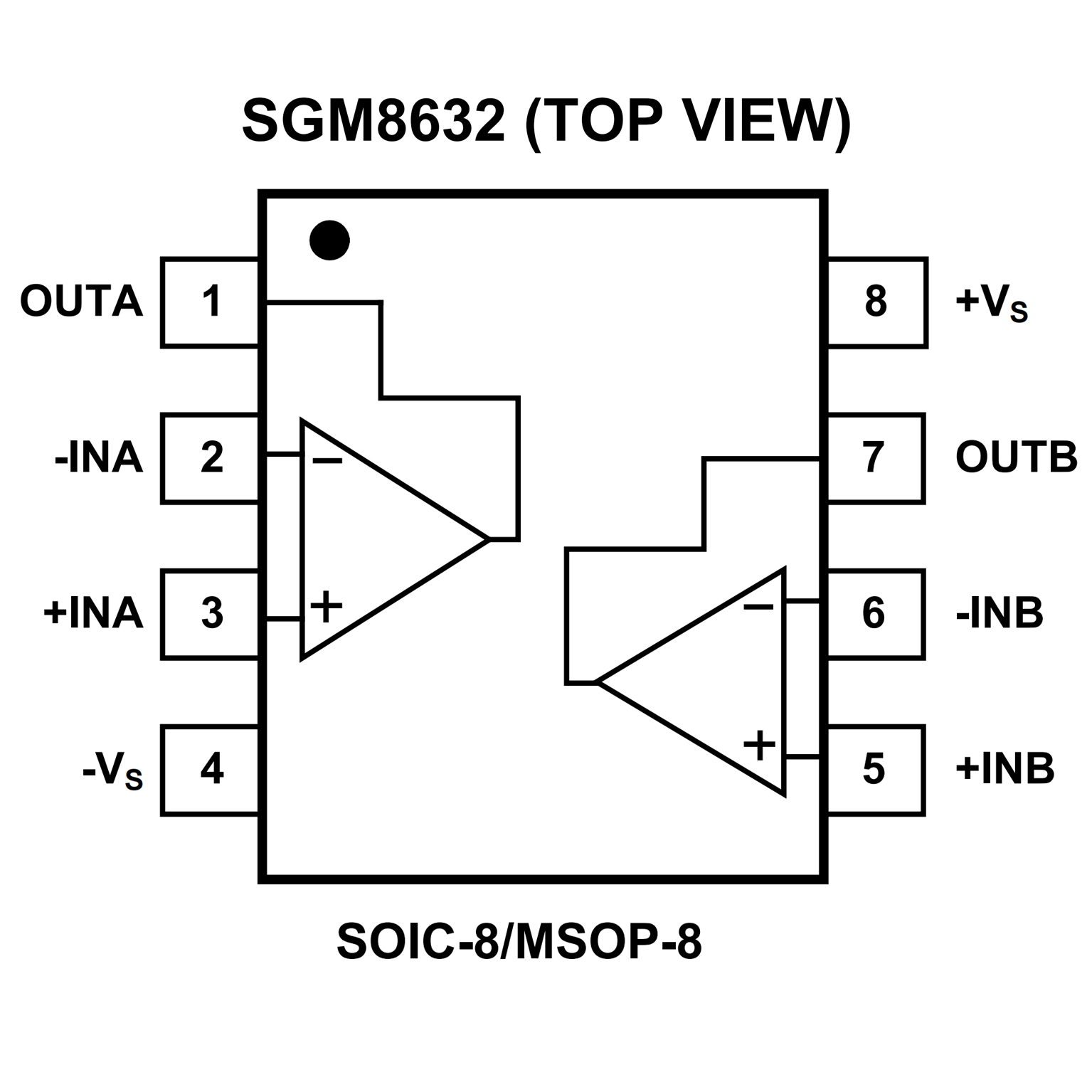

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low Supply-Voltage
Operation...VCC = ±1 V Min
? Wide Bandwidth . . . 7 MHz Typ at
VCC± = ±2.5 V
? High Slew Rate . . . 3 V/μs Typ at
VCC± = ±2.5 V
? Wide Output Voltage Swing . . . ±2.4 V Typ
at VCC± = ±2.5 V, RL = 10 k?
? Low Noise . . . 8 nV/√Hz Typ at f = 1 kHz
PIN CONFIGUTION
