30V Output, 2.5A Current Limit, 1.2MHz High Efficiency Asynchronous Boost Regulator, STI3508CB P2P LMR62014.
STI3508CB
STI3508CB.pdf
STI3508CB.pdfFEATURES
? 2.5V to 5.5V Input Voltage Range
? Integrated 100mΩ Power MOSFET
? 1.2MHz Fixed Switching Frequency
? Internal 2.5A Switch Current Limit Typically
? Adjustable Output Voltage with 1.225V VFB
? Internal Compensation
? Up to 30V Output Voltage
? Automatic Pulse Frequency Modulation Mode at Light Loads
? Available in a 5-Pin SOT23-5 Package

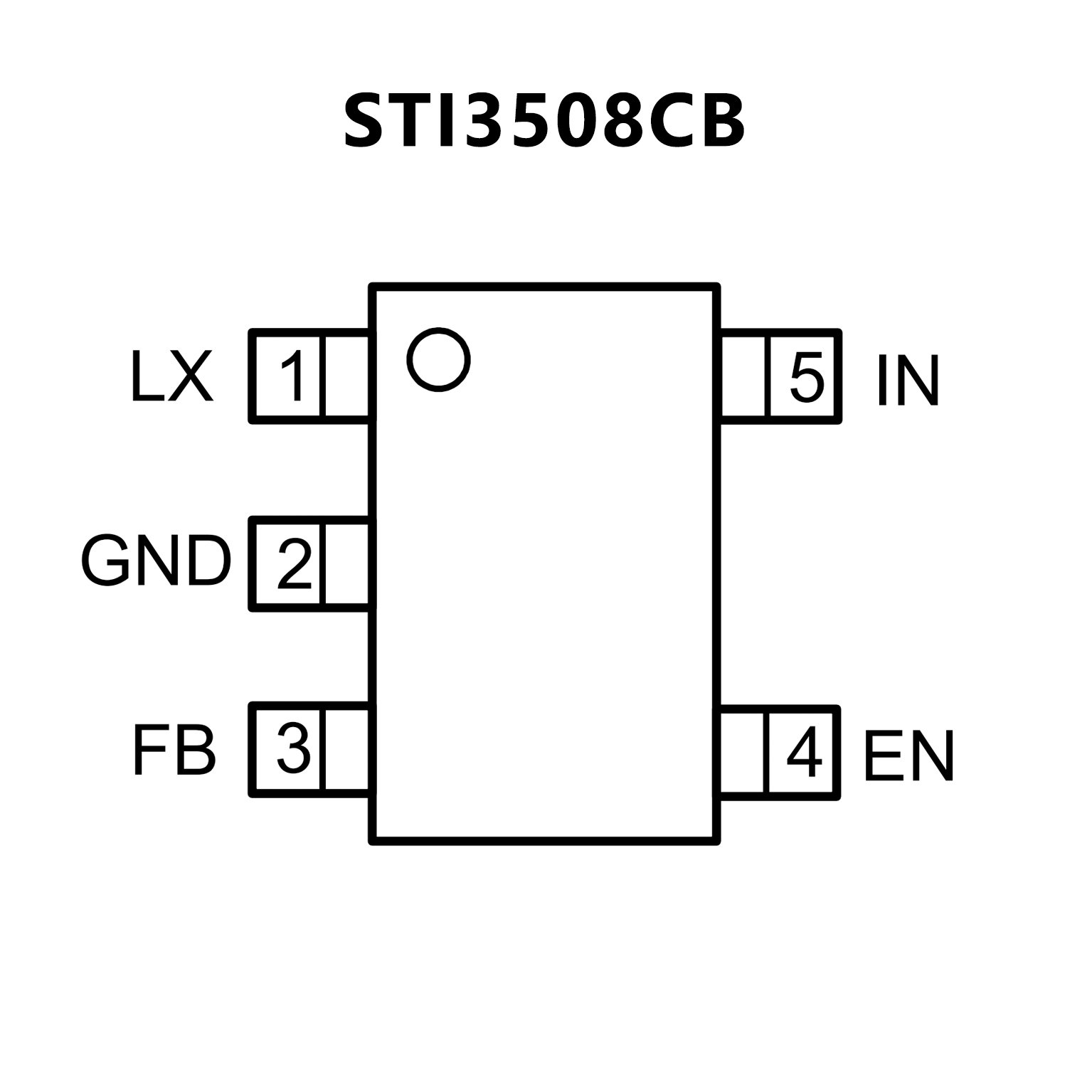

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Input Voltage Range of 2.7V to 14V
? Output Voltage up to 20V
? Switch Current up to 1.4A
? 1.6 MHz Switching Frequency
? Low Shutdown Iq, <1 μA
? Cycle-by-Cycle Current Limiting
? Internally Compensated
? 5-Pin SOT-23 Packaging (2.92 x 2.84 x 1.08mm)
? Fully Enabled for WEBENCH? Power Designer

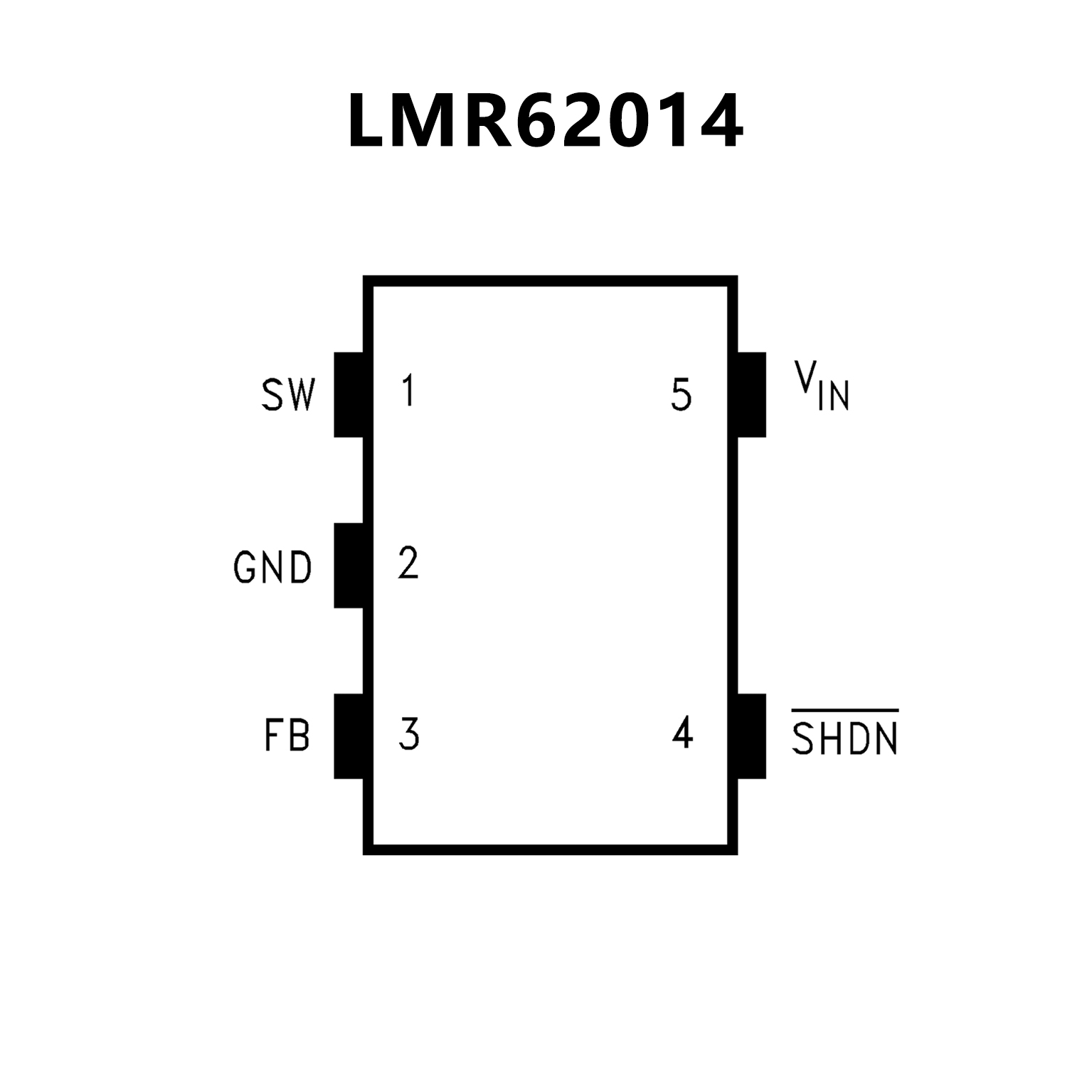

PIN CONFIGUTION
