300mA, Low IQ, High PSRR LDO Regulators, TMI6030 Replace TPS782XX.
TMI6030系列
TMI6030系列.pdf
TMI6030系列.pdfFEATURES
? 2.5V to 5.5V Input Voltage Range
? 320mV @300mA typical Dropout Voltage
? Excellent Transient Response
? Stable with 1μF Ceramic Output Capacitor
? 70dB PSRR at 1kHz
? Low Quiescent Current: 50μA typical.
? Low Shutdown Current: <1μA
? Output Accuracy: ±2%
? Fixed Output Voltage: 1.2V~3.3V
? Current Limit Protection
? Thermal Shutdown
? Output Auto-Discharge in Shutdown
? RoHS Compliant and 100% Lead (Pb)- Free, Halogen-Free

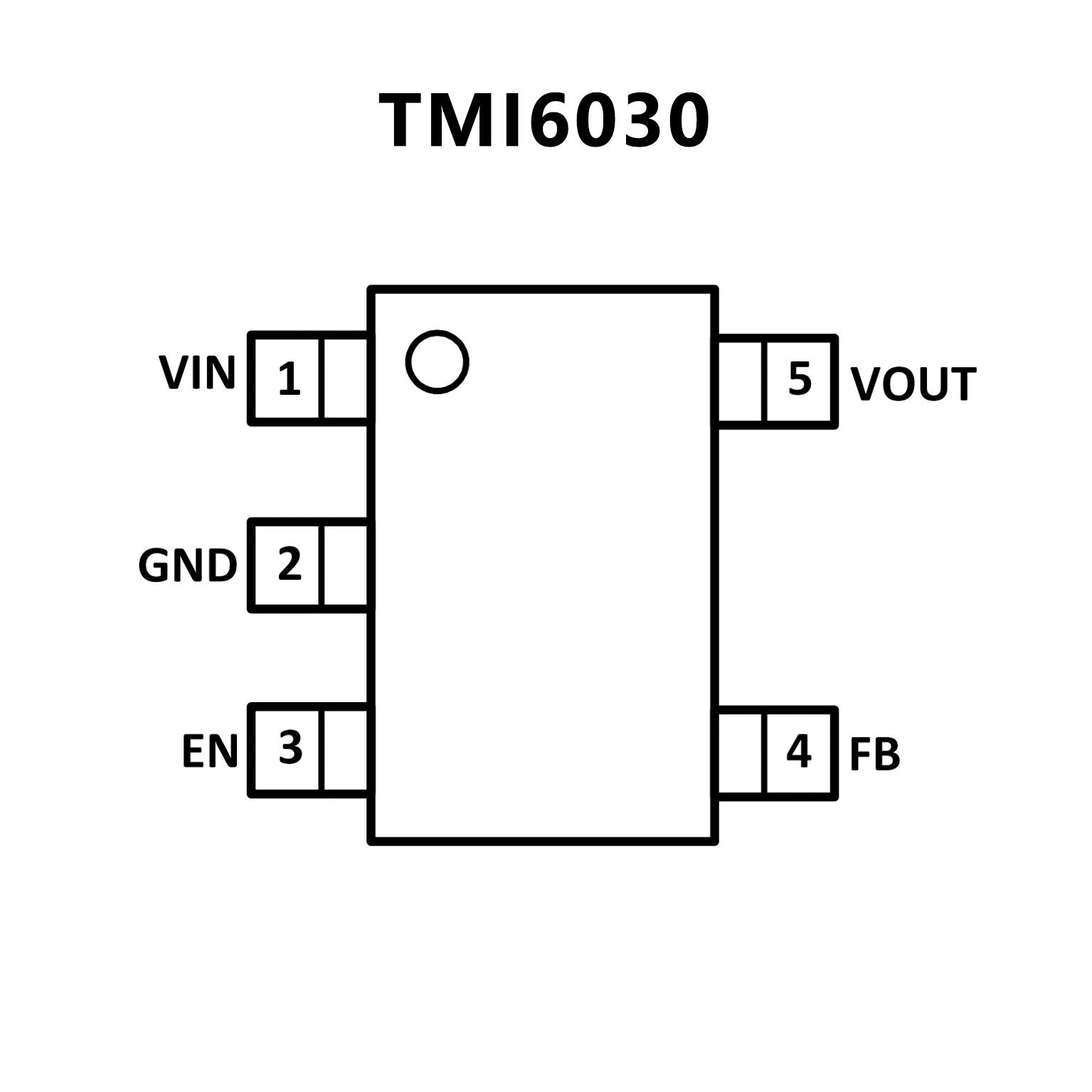

PIN CONFIGUTION
優勢替代
FEATURES
? Low IQ: 500 nA
? 150-mA, Low-Dropout Regulator
? Input Voltage Range: 2.2 V to 5.5 V
? Low-Dropout at 25°C, 130 mV at 150 mA
? Low-Dropout at 85°C, 175 mV at 150 mA
? 3% Accuracy Over Load, Line, and Temperature
? Stable with a 1.0-μF Ceramic Capacitor
? Thermal Shutdown and Overcurrent Protection
? CMOS Logic Level-Compatible Enable Pin
? Available in DDC (TSOT23-5) or
DRV (2-mm x 2-mm SON-6) Packages

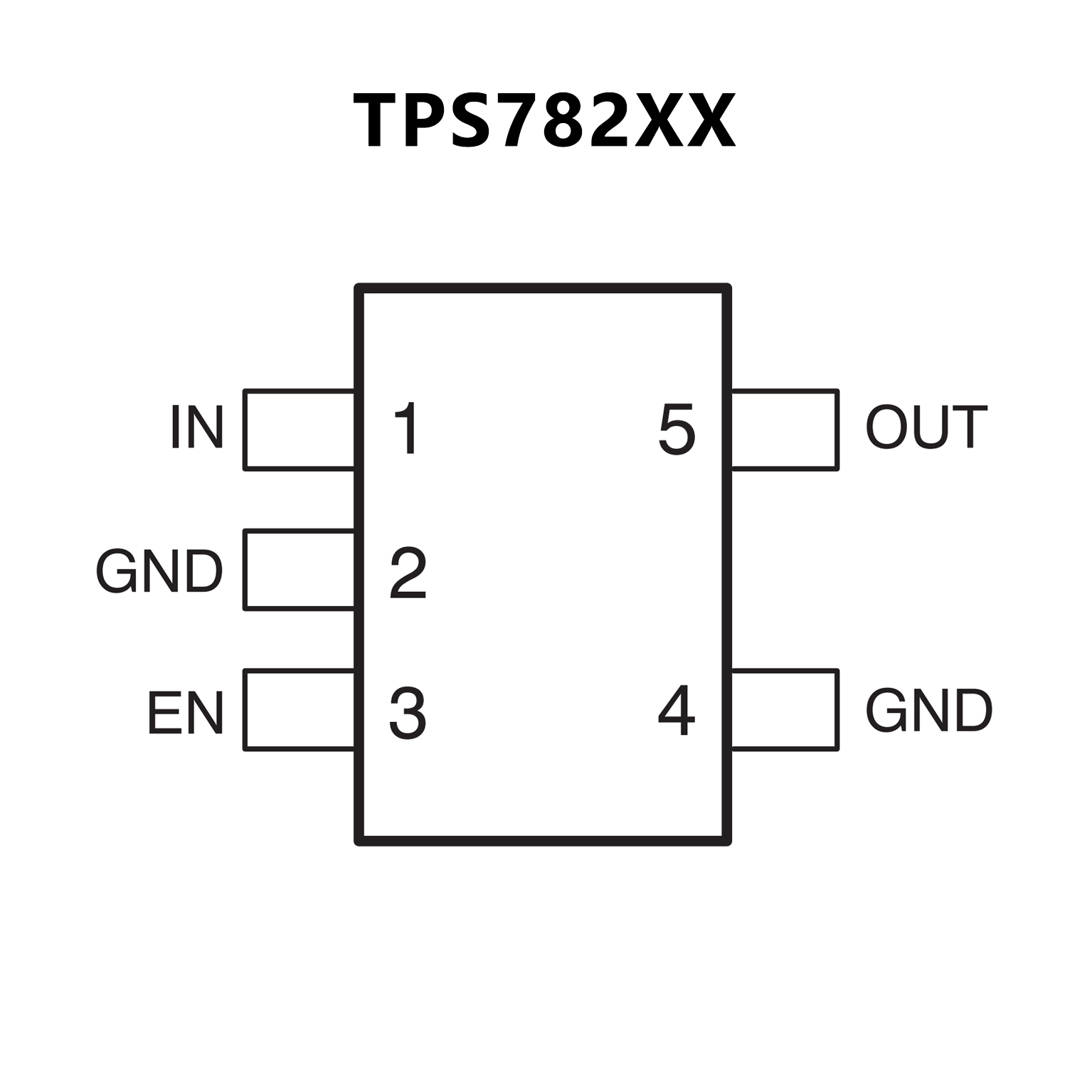

PIN CONFIGUTION
