Precision Adjustable Power Distribution Switch, TMI6260C P2P TPS2553DDBVR.
TMI6260C
TMI6260C.pdf
TMI6260C.pdfFEATURES
? Integrated 60mΩ Power MOSFET
? Adjustable Current Limit 0.3A to 2.5A (typ.)
? Low Supply Current
? 30μA Typical at Switch On State
? 1μA Typical at Switch Off State
? Wide Input Voltage Range: 2.5V to 5.5V
? Fast Transient Response: 8μs
? 0.1ms Typical Rise Time
? Reverse Current Flow Blocking
? Deglitched Open-Drain Over-Current Flag
Output (TMI6260C and TMI6260D)
? Thermal Shutdown Protection
? Hot Plug-In Application (Soft-Start)
? UL 2367 Certification - E528420
? SOT-23-5/SOT-23-6/DFN2x2-6L Package

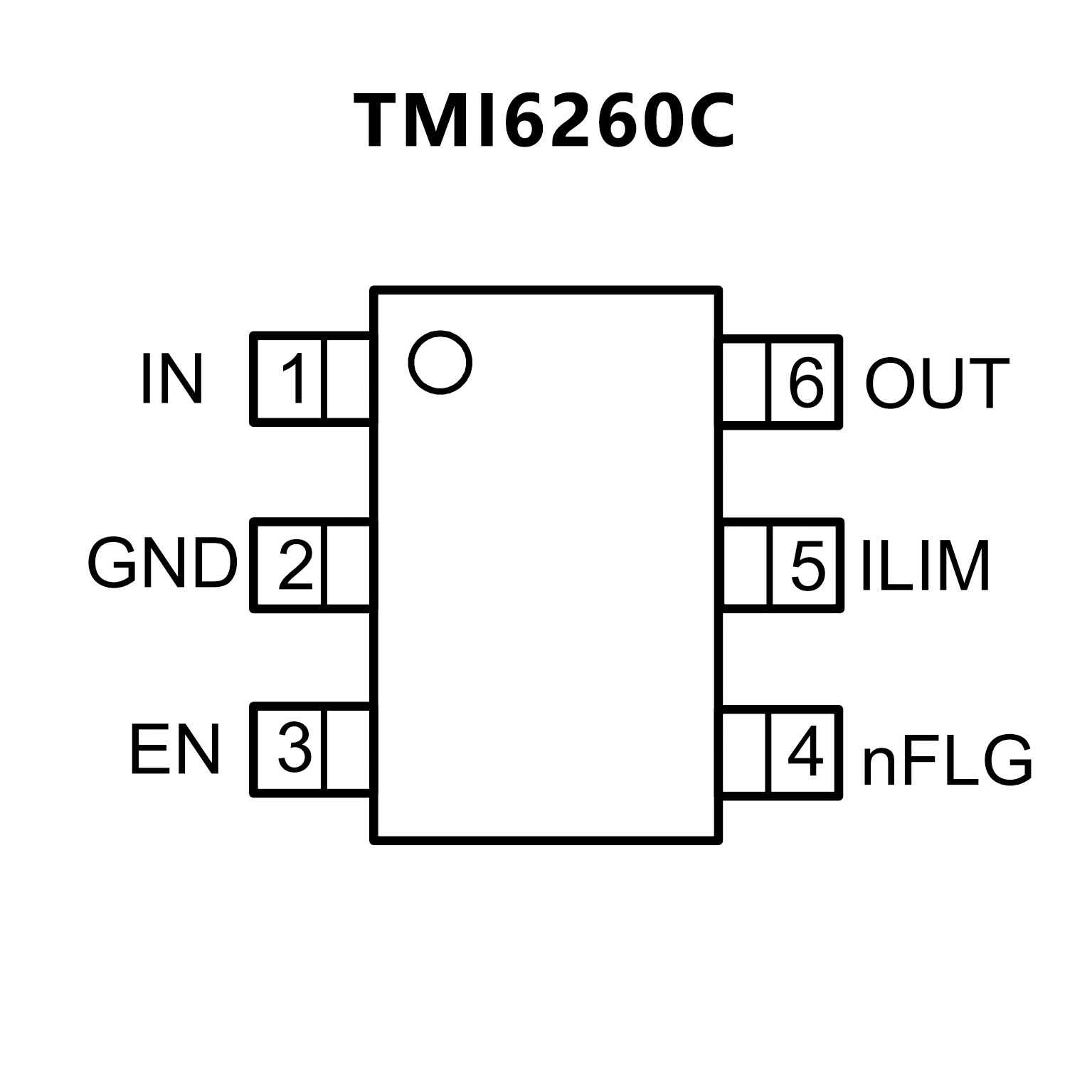

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Up to 1.5 A Maximum Load Current
? ±6% Current-Limit Accuracy at 1.7 A (Typ)
? Meets USB Current-Limiting Requirements
? Backwards Compatible with TPS2550/51
? Adjustable Current Limit, 75 mA–1700 mA (Typ)
? Constant-Current (TPS2552D and TPS2553D)
? TPS2552D (Enable Low) and TPS2553D (Enable
High)
? Fast Overcurrent Response - 2 μs (Typ)
? 85-m? High-Side MOSFET (DBV Package)
? Reverse Input-Output Voltage Protection
? Operating Range: 2.7 V to 6.5 V
? Built-in Soft-Start
?15 kV ESD Protection per IEC 61000-4-2 (With
External Capacitance)
? UL Listed – File No. E169910 and NEMKO
IEC60950-1-am1 ed2.0
? See the TI Switch Portfolio
PIN CONFIGUTION
