3.6-A Brushed DC Motor Driver (PWM Control), TMI8080 Replace DRV8870.
TMI8080.pdf優勢替代
FEATURES
? H-Bridge Motor Driver
– Drives One DC Motor, One Winding of a
Stepper Motor, or Other Loads
? Wide 6.5-V to 45-V Operating Voltage
? 565-mΩ Typical RDS(on) (HS + LS)
? 3.6-A Peak Current Drive
? PWM Control Interface
? Integrated Current Regulation
? Low-Power Sleep Mode
? Small Package and Footprint
– 8-Pin HSOP With PowerPAD?
– 4.9 × 6.0 mm

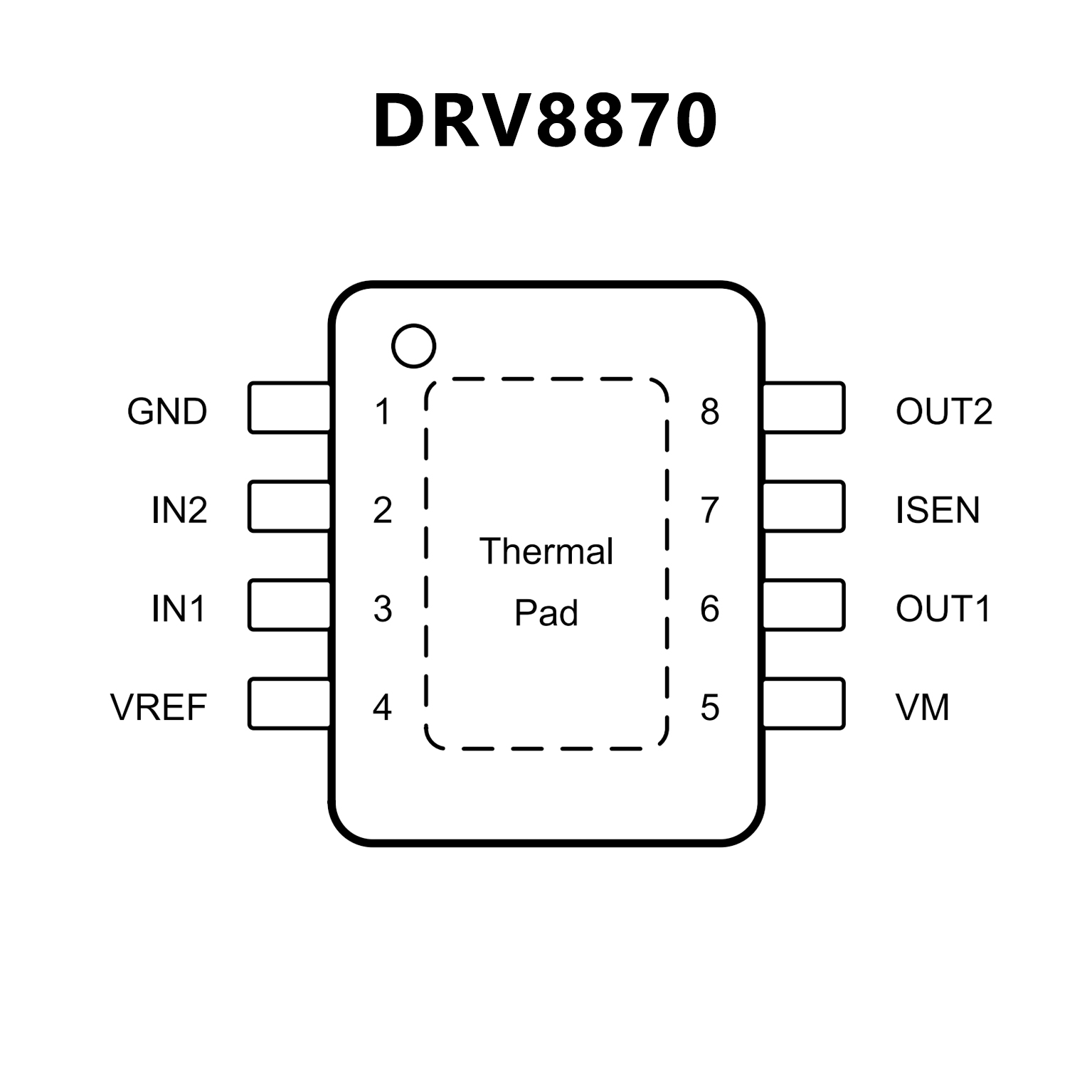

PIN CONFIGUTION
