2A DDR Termination Regulator
AIC1385GR8TR AIC1385GR8TR.pdf

No.10520

FEATURES

VCNTL Input Voltage Range: 2.375V to 5.5V

VIN Input Voltage Range: 1.1V to 5.5V

Continuous 2A Source and Sink Current

Support DDR / DDRII / DDRIII / Low Power
  DDRIII / DDRIV Requirements

Low Output Voltage Offset, ±20mV

High Accuracy Output Voltage at Full-Load

Adjustable VOUT by External Resistor

Stable with 22μF Ceramic Output Capacitor

Low External Component Count

? Built in Soft Start, UVLO and OCP Protection

Thermal Shutdown Protection

? SOP-8 Exposed Pad Packages

DESCRIPTION

AIC1385 linear regulator is designed to achieve 2A source and sink current for termination of. DDR / DDRII / DDRIII while regulating an output voltage to within ?20mV. And it can deliver 1.5A continue current for termination of DDRIV. AIC1385 converts voltage supplies range from 1.1V to 5.5V into an output voltage that adjusts by two external voltage divider resistors. It provides an excellent voltage source for active termination schemes of highspeed transmission lines as those seen in double data rate (DDR) memory system, and it meets the JEDEC SSTL-2 and SSTL-18 or other specific interfaces such as HSTL, SCSI1 and SCSI-3 specifications for termination of DDR-SRAM. Built-in current limiting in source and sink mode, on-chip thermal shutdown protection to against fault conditions. The AIC1385 is available in the SOP-8 with exposed pad package

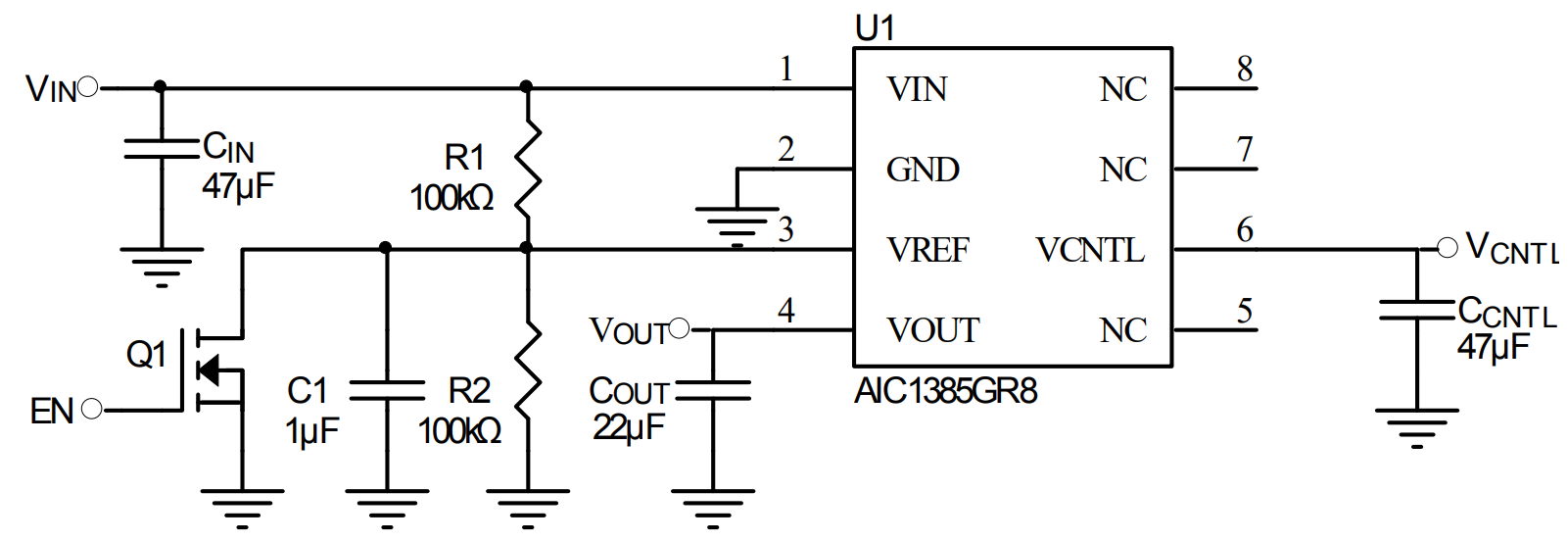

APPLICATION CIRCUIT

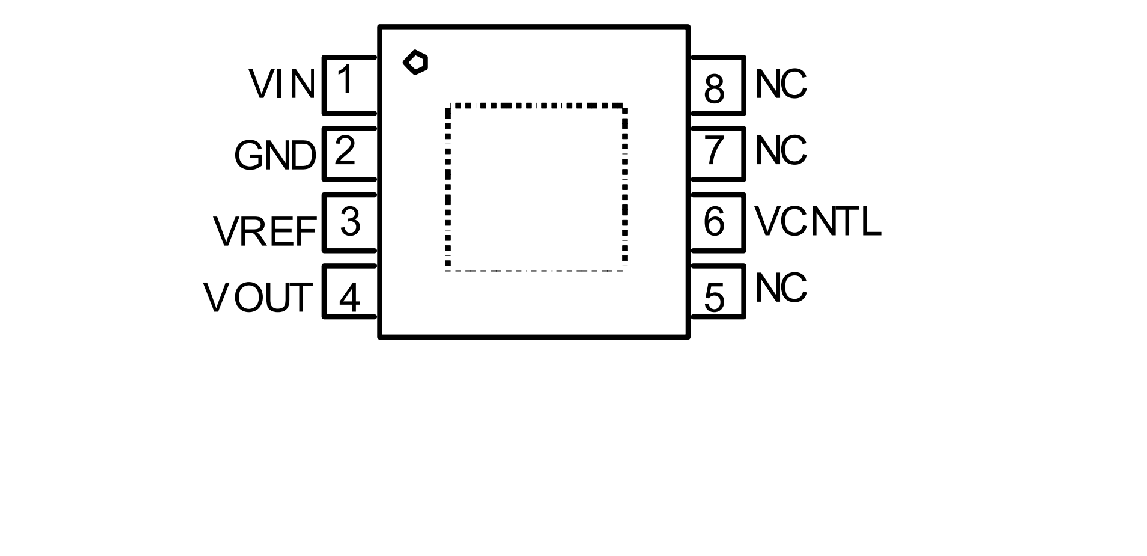

PIN CONFIGUTION
