600mA, Low Quiescent Current, Fast Transient Low Dropout Linear Regulator
AP7365-28WG-7 AP7365-28WG-7.pdf

No.10530

FEATURES

? 600mA Low Dropout Regulator with EN

? Very low IQ: 35μA ? Wide input voltage range: 2V to 6V

? Fixed output options: 0.8V to 3.9V (0.1V step size possible)

? High PSRR: 65dB at 1kHz

? Fast start-up time: 200μs

? Stable with low ESR, 1μF ceramic output capacitor

? Excellent Load/Line Transient Response

? Low dropout: 300mV at 600mA

? Current limit and short circuit protection

? Thermal shutdown protection

? Ambient temperature range: -40oC to 85oC

DESCRIPTION

The AP7365 is a 600mA, adjustable and fixed output voltage, low dropout linear regulator. The device included pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications, for example, battery powered devices. The typical quiescent current is approximately 35μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. Please contact your local sales office for any other voltage options. The AP7365 is available in SOT25, SOT89/R-3L, SOT223/R-3L, and DFN2020-6 packages.

APPLICATION CIRCUIT

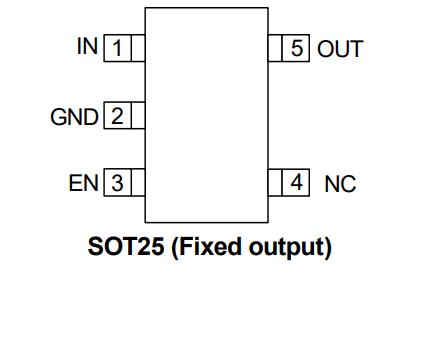

PIN CONFIGUTION
