20V, 2A, 350KHz PWM Buck Converter
AS1002EBT AS1002EBT.pdf

No.10531

FEATURES

Operation Voltage Range: 3.6 to 20V

350KHz Fixed oscillator frequency

? Precision Reference Voltage: 0.5V (±2%)

Low current consumption: 4.5mA

? Programmable Soft-Start function (SS)

? Short Circuit Protection(SCP)

? Auto Re-start Function(ARSCP)

? Built-in P-MOSFET for 2A loading

DESCRIPTION

The AS1002 is a buck topology of switching regulator for wide operating voltage applications field. The AS1002 includes a high current P-channel MOSFET, high precision reference (0.5V) for comparing output voltage with feedback amplifier, an internal dead-time control and oscillator for controlling the maximum duty cycle and PWM frequency, and has power-on programmable soft start time and short circuit PMOS turn-off and auto re-start protection functions.
The AS1002 is available in a low profile SOP-8L package.

APPLICATION CIRCUIT

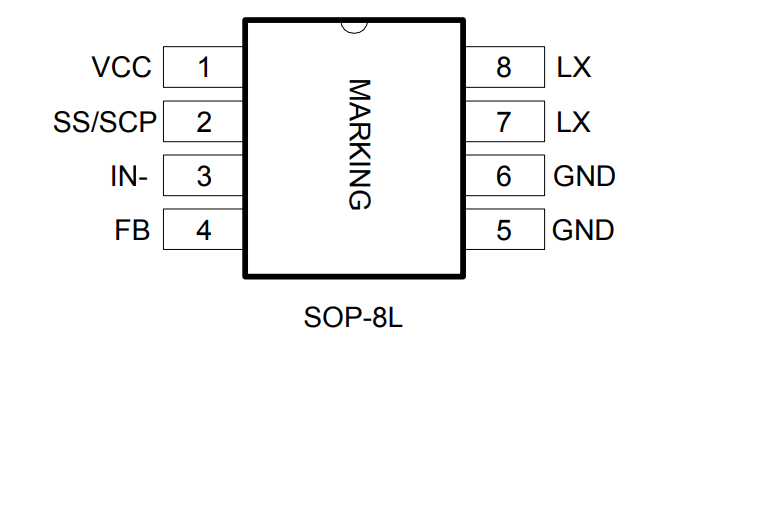

PIN CONFIGUTION
