Surface Miunt Zener Diode
BZT52C3V9Q-7-F
BZT52C3V9Q-7-F.pdf
BZT52C3V9Q-7-F.pdf
No.10543
FEATURES
? Planar Die Construction
? 500mW Power Dissipation
? General Purpose, Medium Current
? Ideally Suited for Automated Assembly Processes
DESCRIPTION
? Surface Miunt Zener Diode
? Case: SOD123
APPLICATION CIRCUIT

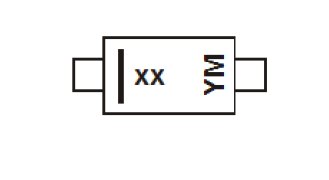

PIN CONFIGUTION
