Dual N-Channel Enhancement Mode MOSFET
2N7002DW-7-F
2N7002DW-7-F.pdf
2N7002DW-7-F.pdf
No.10517
FEATURES
? Dual N-Channel MOSFET
? Low On-Resistance
? Low Gate Threshold Voltage
? Low Input Capacitance
? Fast Switching Speed
? Low Input/Output Leakage
? Ultra-Small Surface Mount Package
DESCRIPTION
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
APPLICATION CIRCUIT

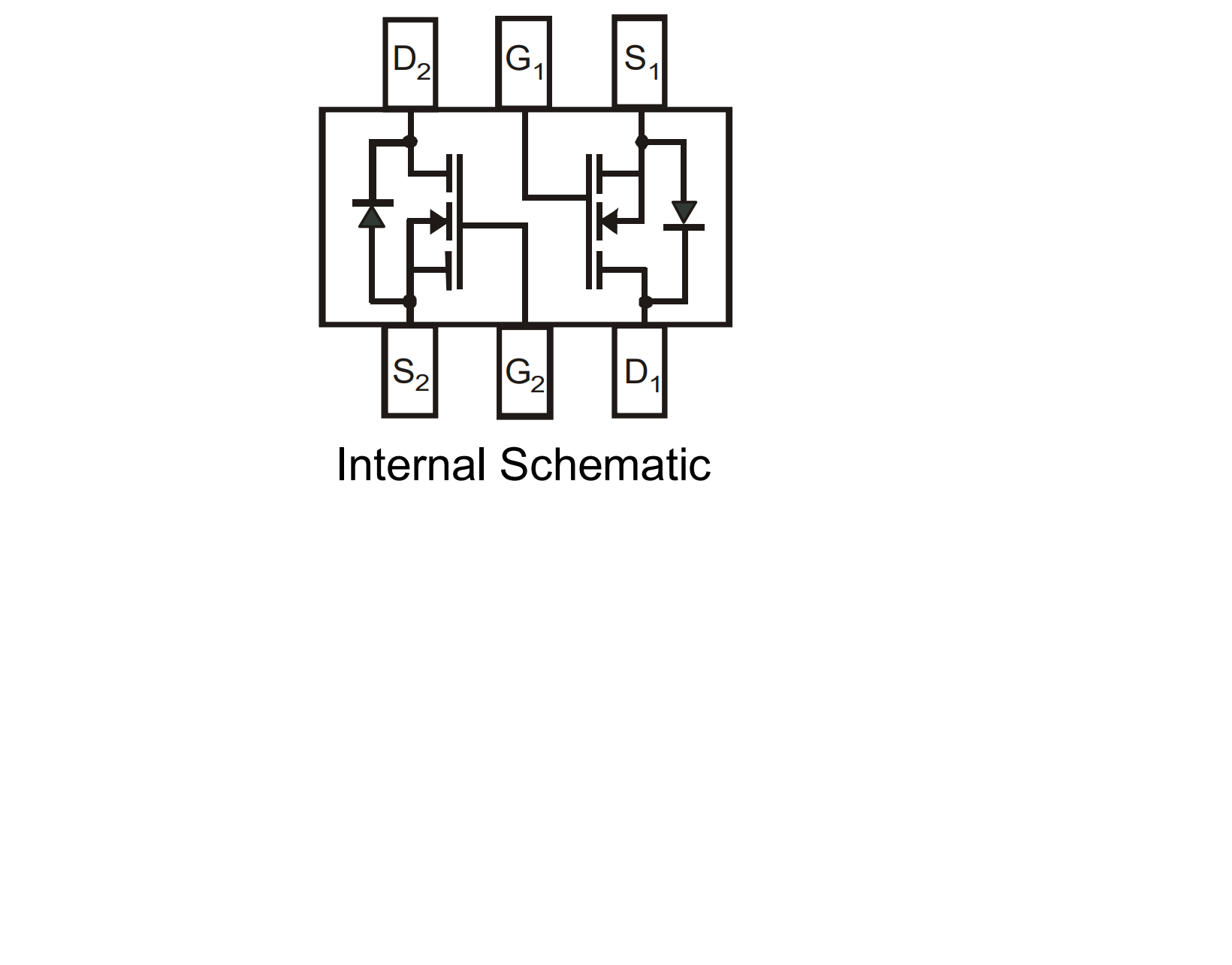

PIN CONFIGUTION
