Automotive Low-side Driver with Dual Self-Protection Featuring Current and Temperature Limits.
SGM42402Q
SGM42402Q.pdf
SGM42402Q.pdf
FEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Full Set of Protections
Short-Circuit Protection
Over-Voltage Protection
ESD Protection
Thermal Shutdown with Automatic Restart
? Clamp Integrated for Switching of Inductive Loads
? dV/dt Robustness
? 42V Drain-to-Source Breakdown Voltage
? Output Clamp Voltage: 42V
? Static Drain-to-Source On-Resistance:
110m?/Channel (TYP) at 10V
? Continuous Drain Current:
SOIC-8:
3.2A, 1-Channel On
2.2A/CH, 2-Channel On
SOIC-8 (Exposed Pad):
4.2A, 1-Channel On
3.1A/CH, 2-Channel On
Output Peak Current (Thermal Limited): 8.8A
? Logic Level Input Capable of Analog Driving
? Available in Green SOIC-8 and SOIC-8 (Exposed
Pad) Packages
DESCRIPTION
SGM42402Q is a dual self-protected, low-side driver, which provides several protection features, including over-current, over-temperature, and ESD, as well as integrated drain-to-gate clamping for over-voltage protection. With its safeguarding capabilities, this device is an ideal option for usage in harsh automotive environments.
The SGM42402Q is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.
The SGM42402Q is available in Green SOIC-8 and SOIC-8 (Exposed Pad) packages.
APPLICATION CIRCUIT

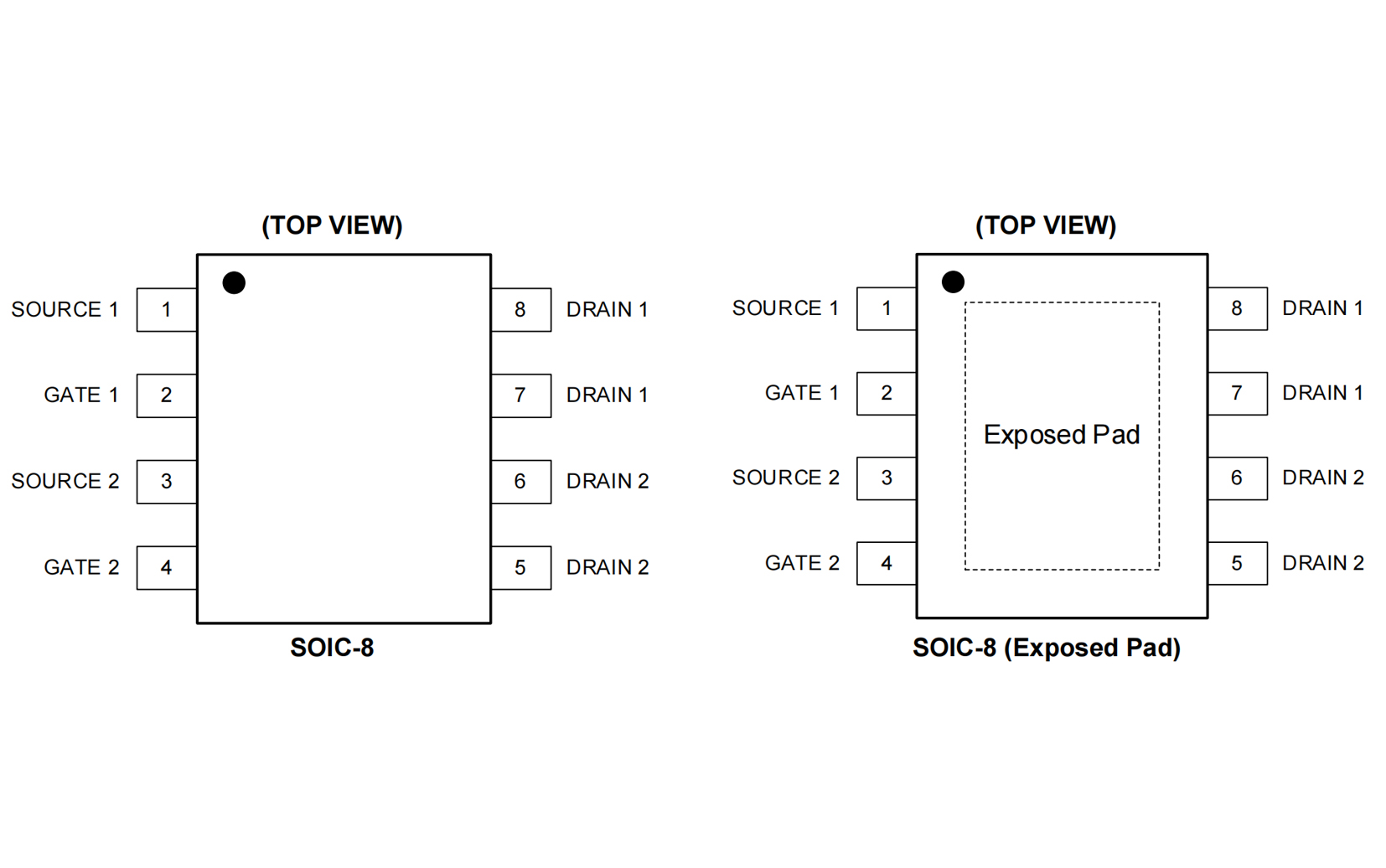

PIN CONFIGUTION
