SGM5102.pdf
No.14051
? 2-Channel Simultaneous Sampling
The SGM5102 is a 14-bit, 2 channels simultaneous sampling pipeline analog-to-digital converter (ADC). Its good DC and AC performances are designed for low power high-speed control application.
It supports both oversampling and undersampling of IF frequencies.
The SGM5102 offers series LVDS interface. Each ADC channel output can be shifted out by 2-lane mode (2 bits at a time) or 1-lane mode (1 bit at a time). The LVDS drivers have internal optional termination resistors and they are turned off by default.
The SGM5102 supports either differential or single ended clock signal. Clock signals with PECL, TTL, CMOS or LVDS format can be provided to ENC+ and ENC- pins. The device has internal clock duty cycle stabilizer, which allows a wide range clock duty cycles and keeps high ADC performance at the same time.

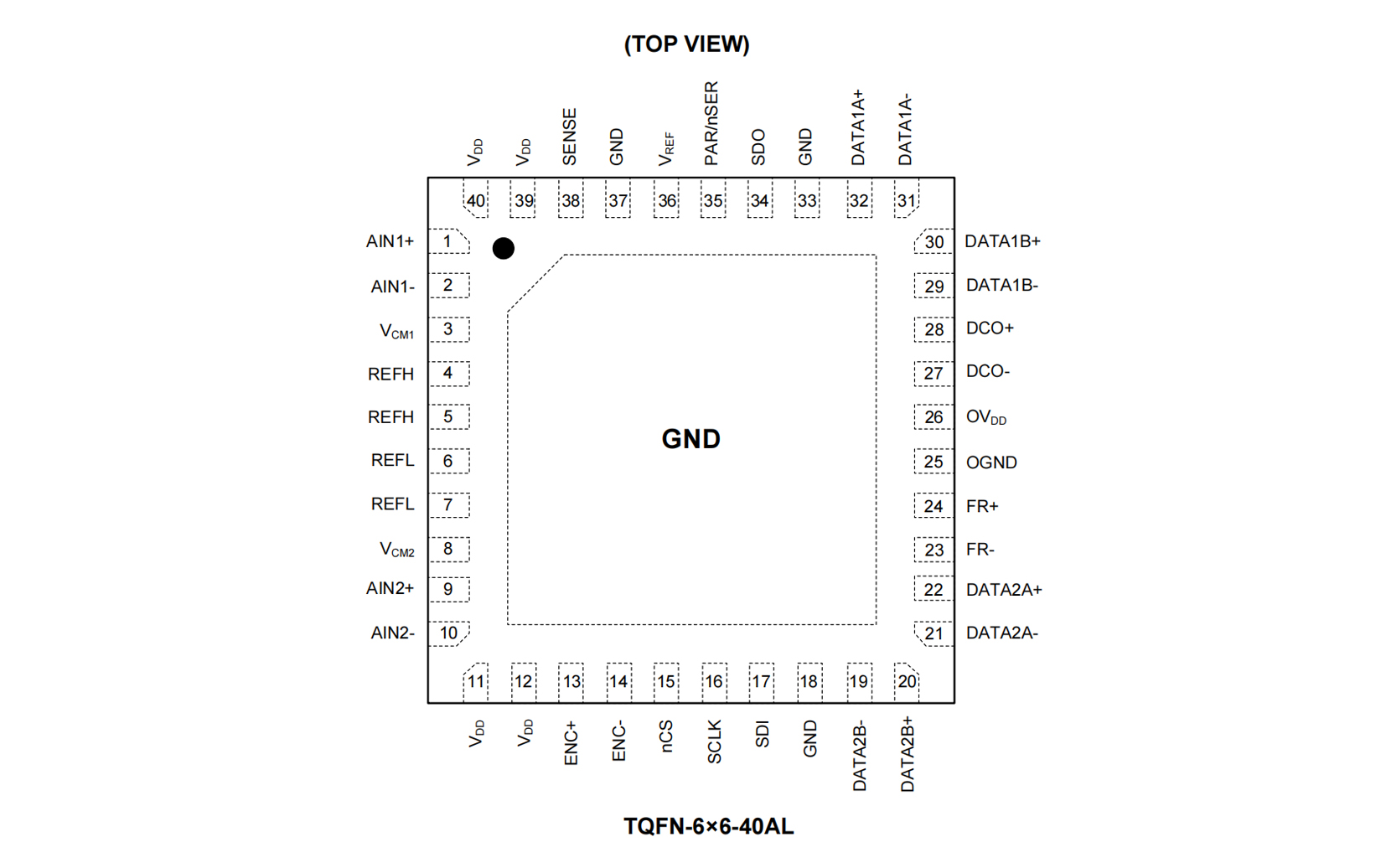

The SGM5102 is available in a Green TQFN-6×6-40AL package. It operates over an ambient temperature range -40℃ to +125℃.
