4V to 60V Input, Current Mode Synchronous Buck Controller.
SGM63600Q
SGM63600Q.pdf
SGM63600Q.pdf
No.14157
FEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1:
TA = -40℃ to +125℃
? Integrated Dual N-MOSFET Drivers
? Wide 4V to 60V Input Voltage Range
? 100kHz to 1MHz Adjustable Frequency Range
? Synchronous Output (SYNCO) with 180o Phase
Shift
? Up to 99% Duty Cycle in Low Dropout Mode
? Adjustable Soft-Start with Pre-biased Capability
? Adjustable UVLO Protection through EN Input
? Power Good (PG) Indicator
? External Power Supply (VCC2) for Internal LDO
? Programmable PSM and CCM Operations
? Adjustable Cycle-by-Cycle Current Limit
? Hiccup Mode Current Limit
? Thermal Shutdown
? OVP and OCP Output Protections
? Frequency Fold-back Short Circuit Protection
? Available in a Green TQFN-3×4-20AL Package
DESCRIPTION
The SGM63600Q is a 4V to 60V current mode controller for synchronous Buck converters. It is capable to efficiently drive two N-MOSFETs over the whole voltage range.
This device uses accurate cycle-by-cycle current limiting in PWM operation. Power-save mode (PSM) is used at light load to keep high efficiency. It can also enter non-synchronous PWM mode if the PSM is enabled.
Switching frequency can be set by an external resistor (RFREQ), or an external clock (SYNC input) for low noise applications. The protection functions include UVLO, thermal shutdown, accurate output over-voltage protection (OVP) and over-current protection (OCP).
The device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.
The SGM63600Q is available in a Green TQFN-3×4-20AL package.
APPLICATION CIRCUIT

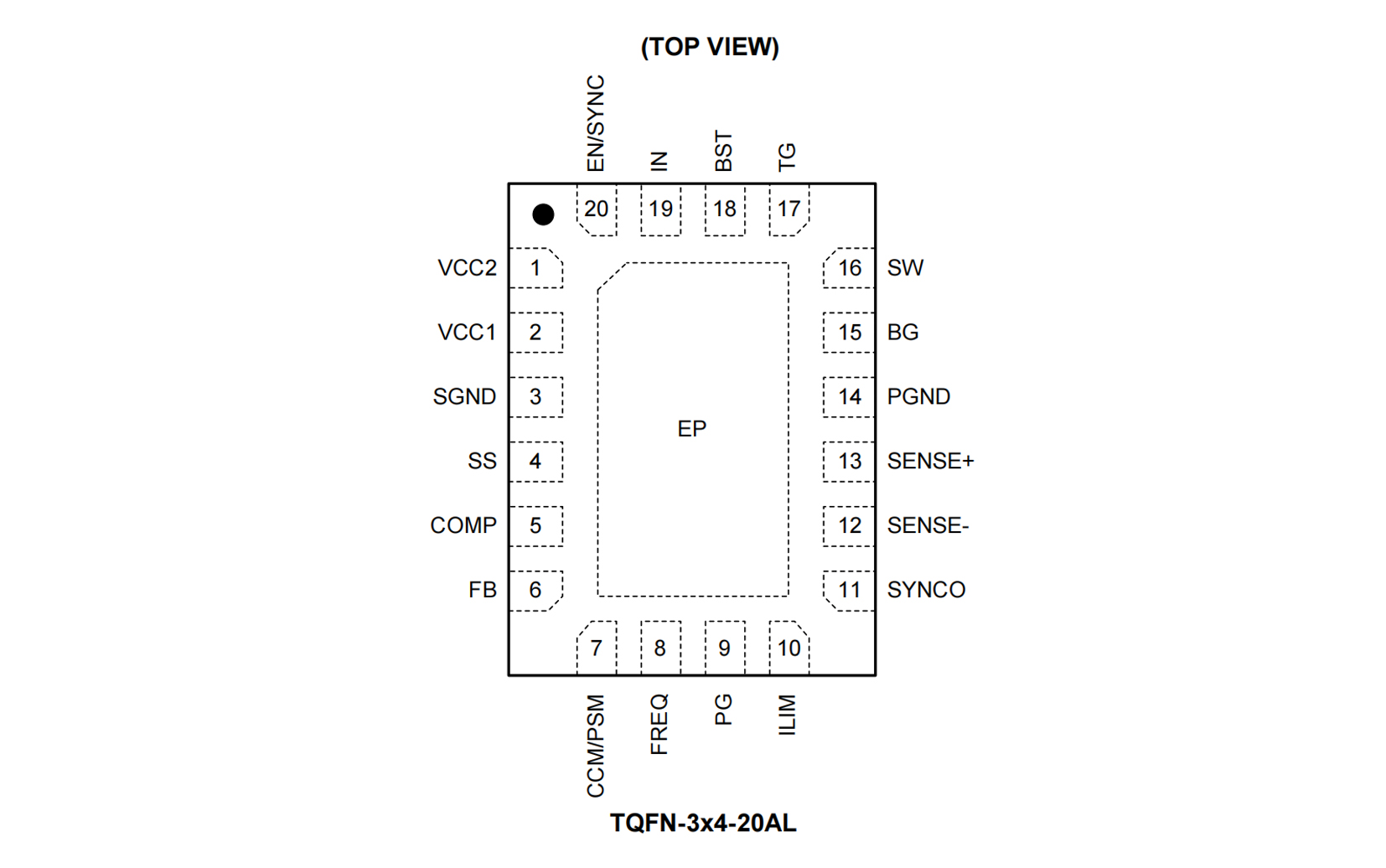

PIN CONFIGUTION
