SGM9111.pdf
No.10617
? Low Cost
? Excellent Video Performance
? 5-Pole Reconstruction Filter
? Internal Gain: 6dB
? Rail-to-Rail Output
? Input Voltage Range Includes Ground
? AC-Coupled Input
? Operates on 3.0V to 5.5V Single-Supplies
? Low Power
? 7mA Typical Supply Current
? Small Packaging SGM9111 Available in Green

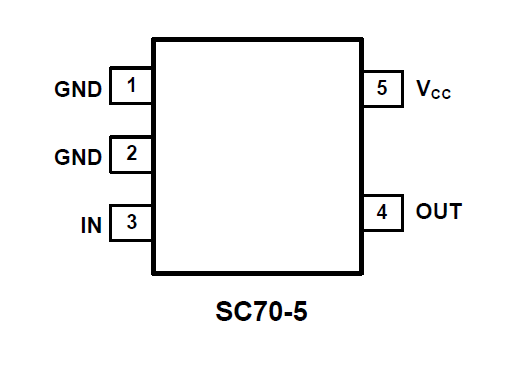

SOIC-8 and SC70-5 Packages

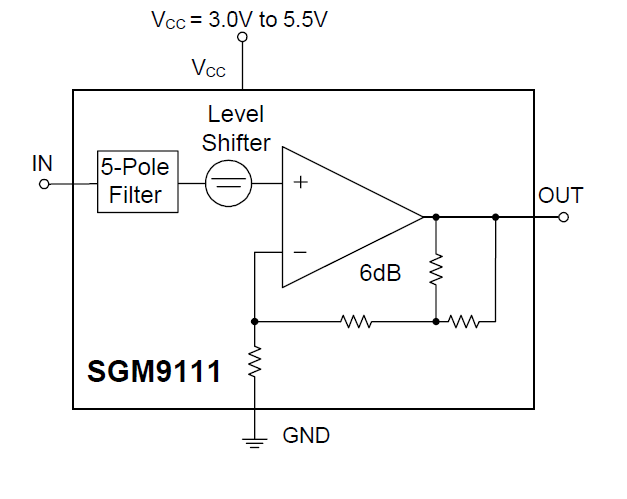

The SGM9111 is single rail-to-rail 5-pole output reconstruction filter with a -3dB bandwidth of 8MHz and a slew rate of 34.8V/μs. Operating from single supplies ranging from 3.0V to 5.5V and sinking an ultra-low 7mA quiescent current, the SGM9111 is ideally suited for low power, battery-operated applications.
The SGM9111 employs an internal level shift circuit that avoids sync-pulse clipping and allows DC-coupled output. It is specified over the extended -40°C to +85°C temperature range. It has Green of SOIC-8 and SC70-5 packages.
